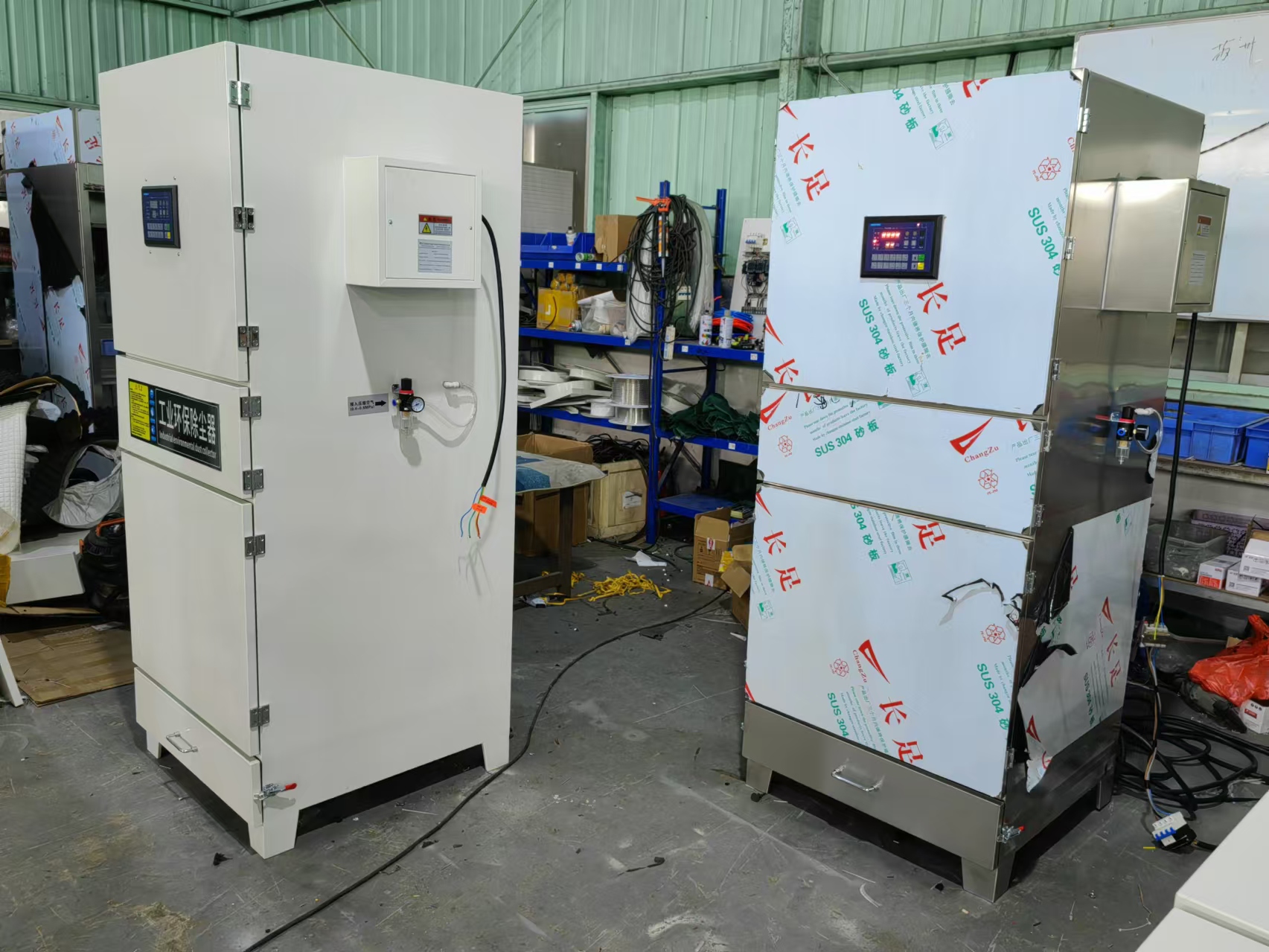

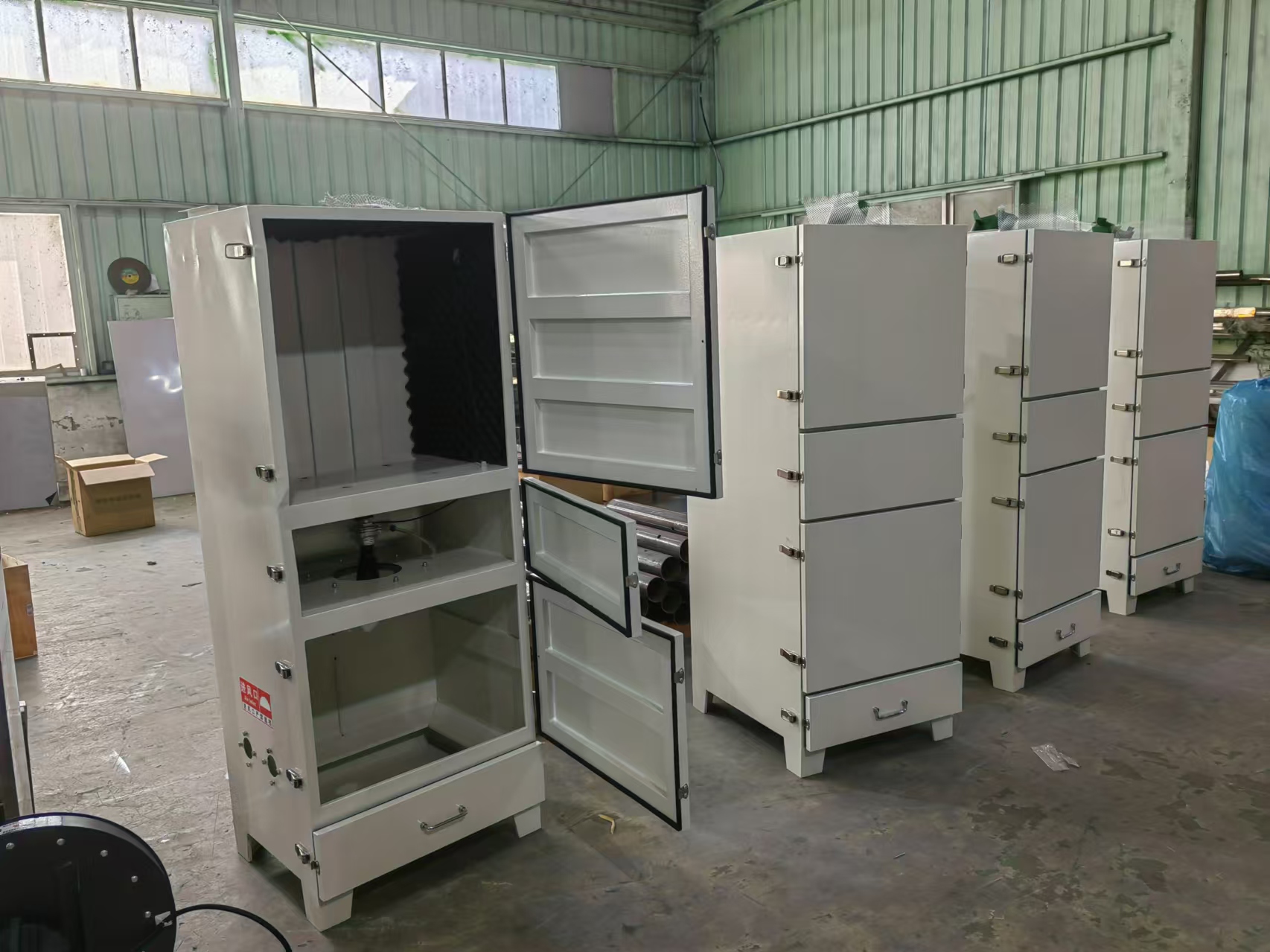

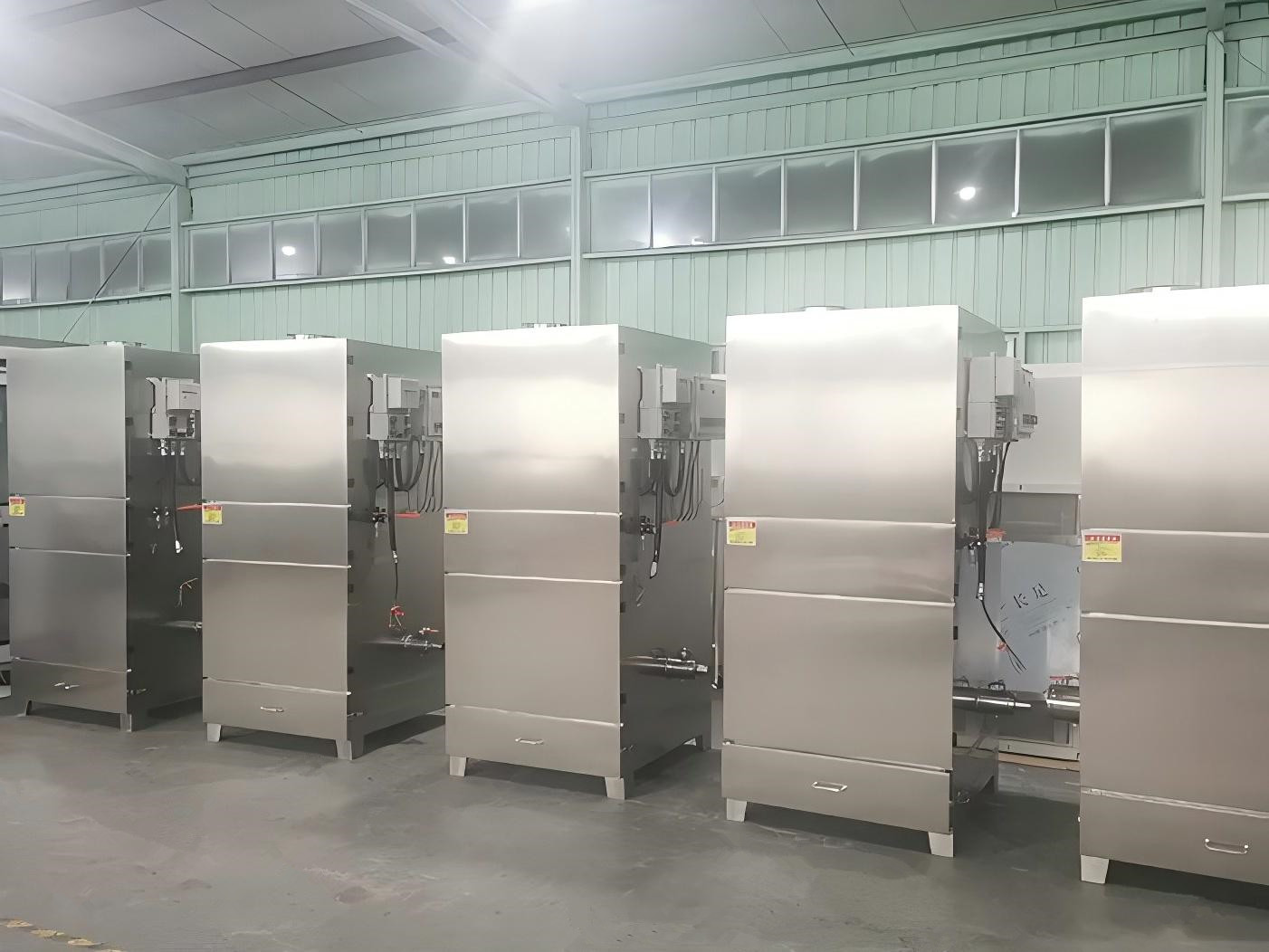

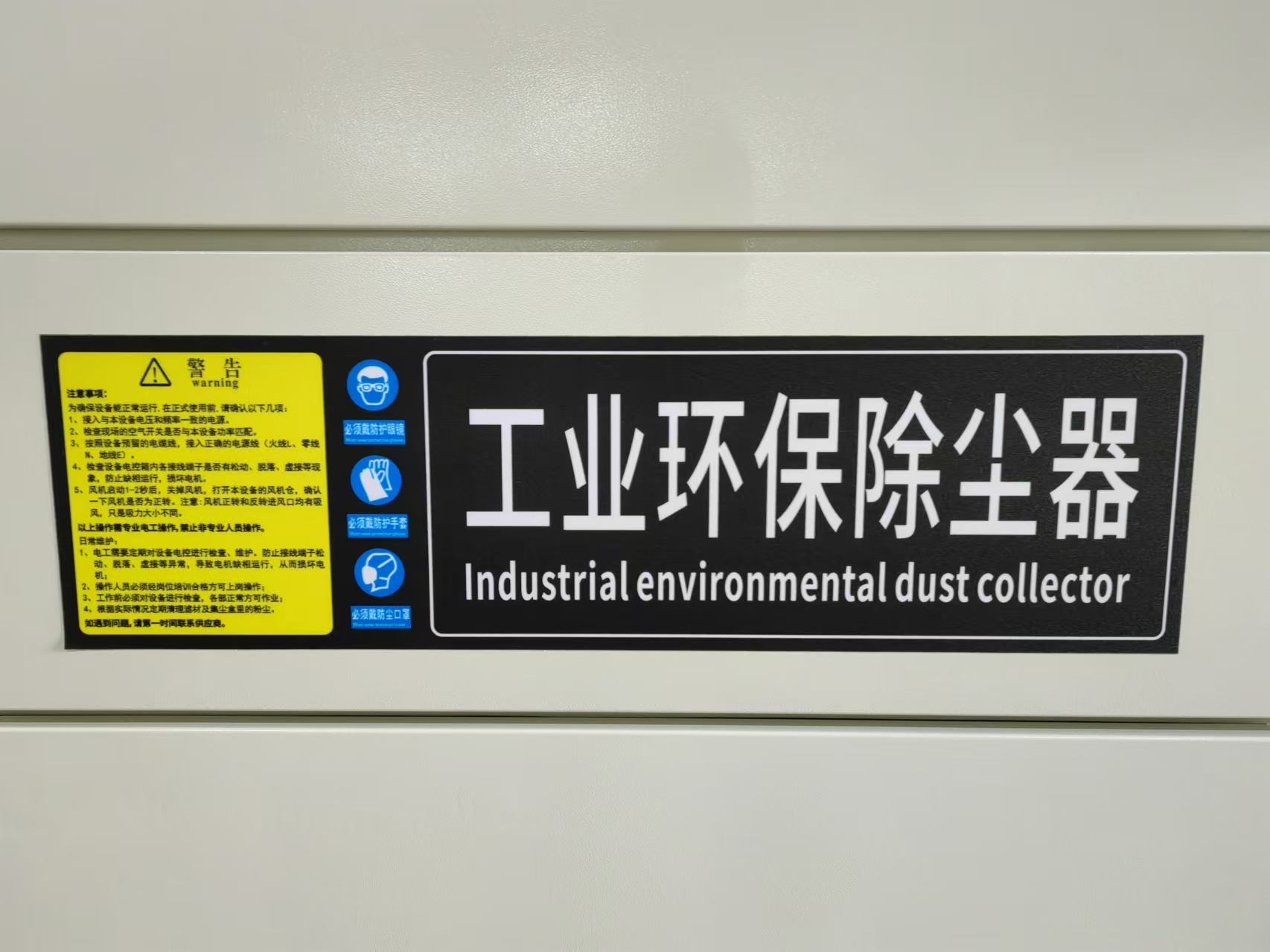

High Quality Industrial Pulse Jet Cartridge Dust Collector

Short Description:

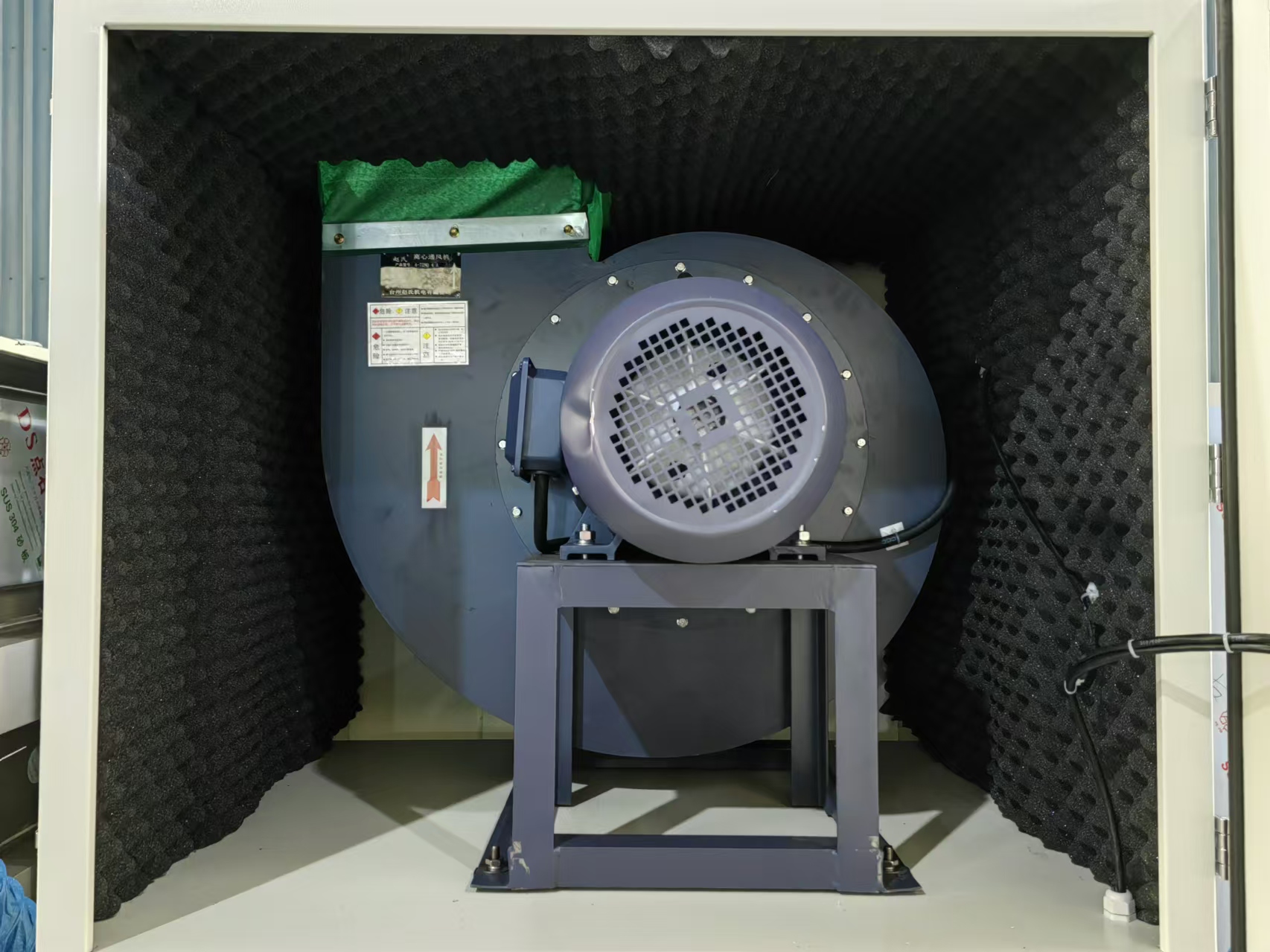

Standalone cartridge dust collector is a kind of clean equipment which has small volume and high dedusting efficiency and can collect and handling dust in place to effectively ensure air cleanliness. It is compromised of dedusting case, centrifugal fan, filter cartridge, dust catcher and microcomputer controller. The explosion-proof function is optional according to on-site situation. The dust particle is inhalated into internal dedusting case via dedusting duct by negative pressure centrifugal fan. Due to gravity and upstream, firstly the coarse dust particle is primarily filtered by filter cartridge and directly fall into dust catcher while thin dust particle is collected on external surface by filter cartridge. Dusty air is filtered, resolved and purifier and exhausted into clean room by centrifugal fan.

Air Volume: 600~9000 m3/h

Rated Power: 0.75~11 kW

Filter Cartridge Qty.: 1~9

Filter Cartridge Material: PU fiber/PTFE membrane(Optional)

Case Material: powder coated steel plate/full SUS304(Optional)

Send email to us

Product Detail

Product Tags

Product Description

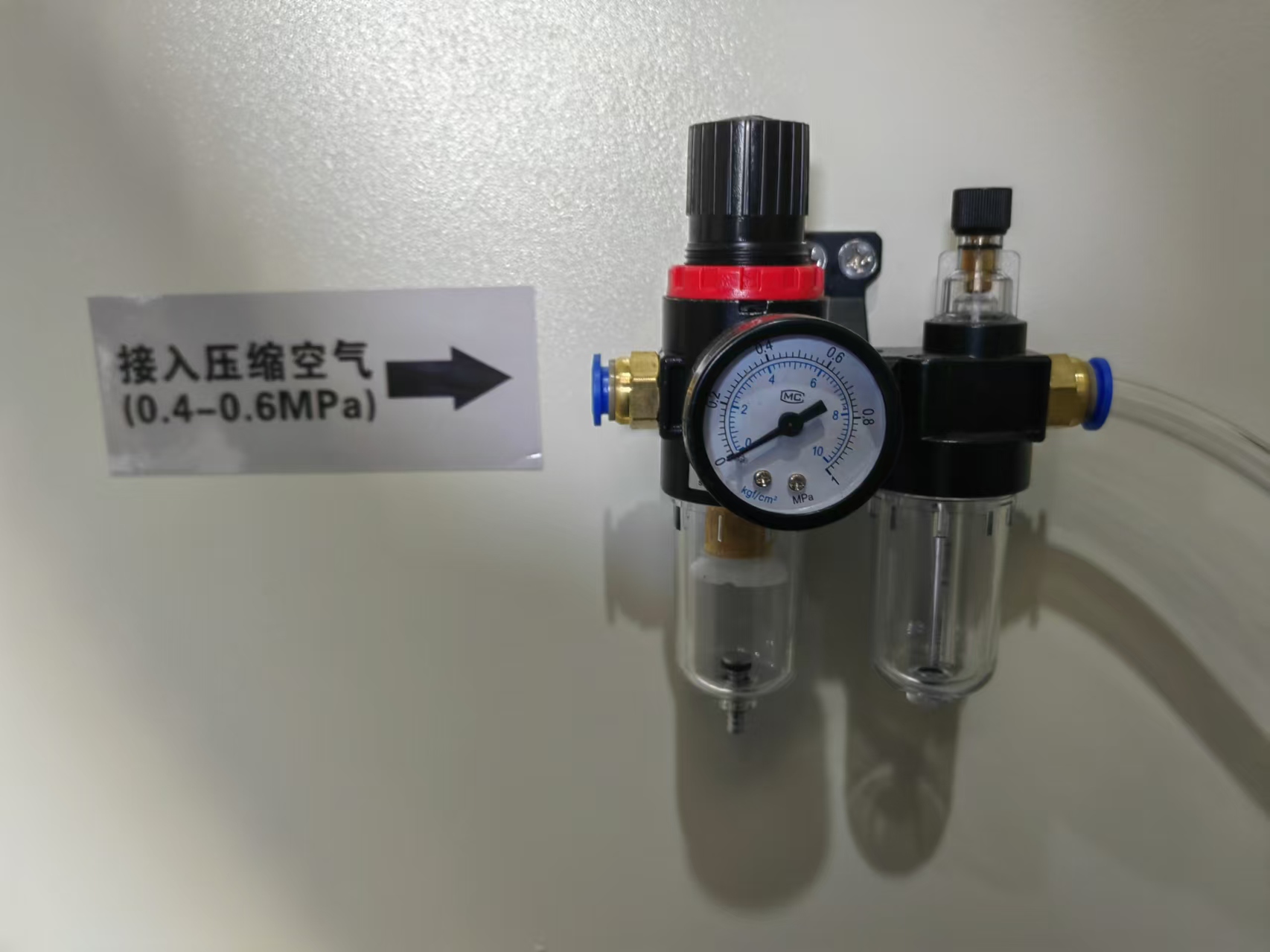

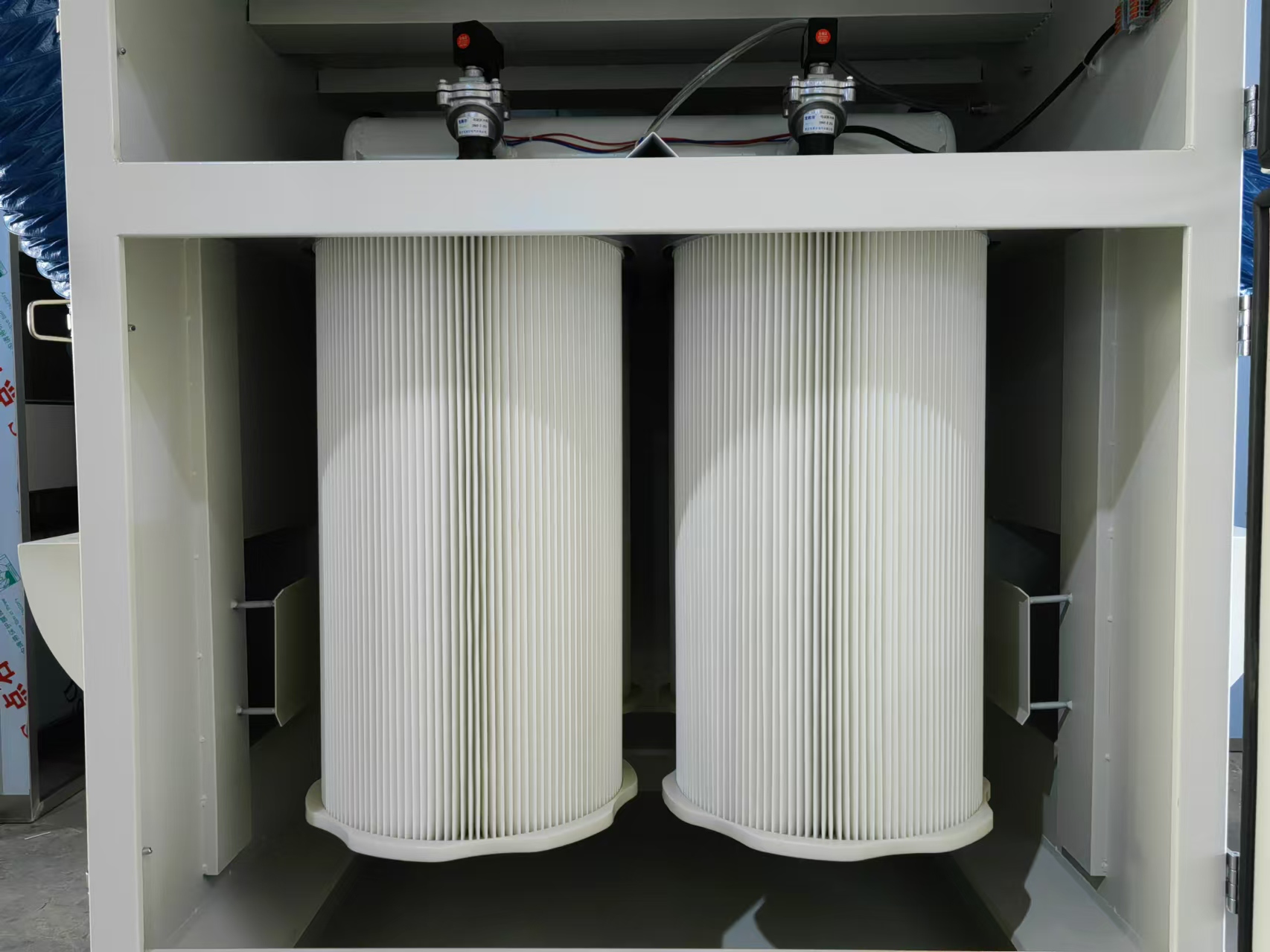

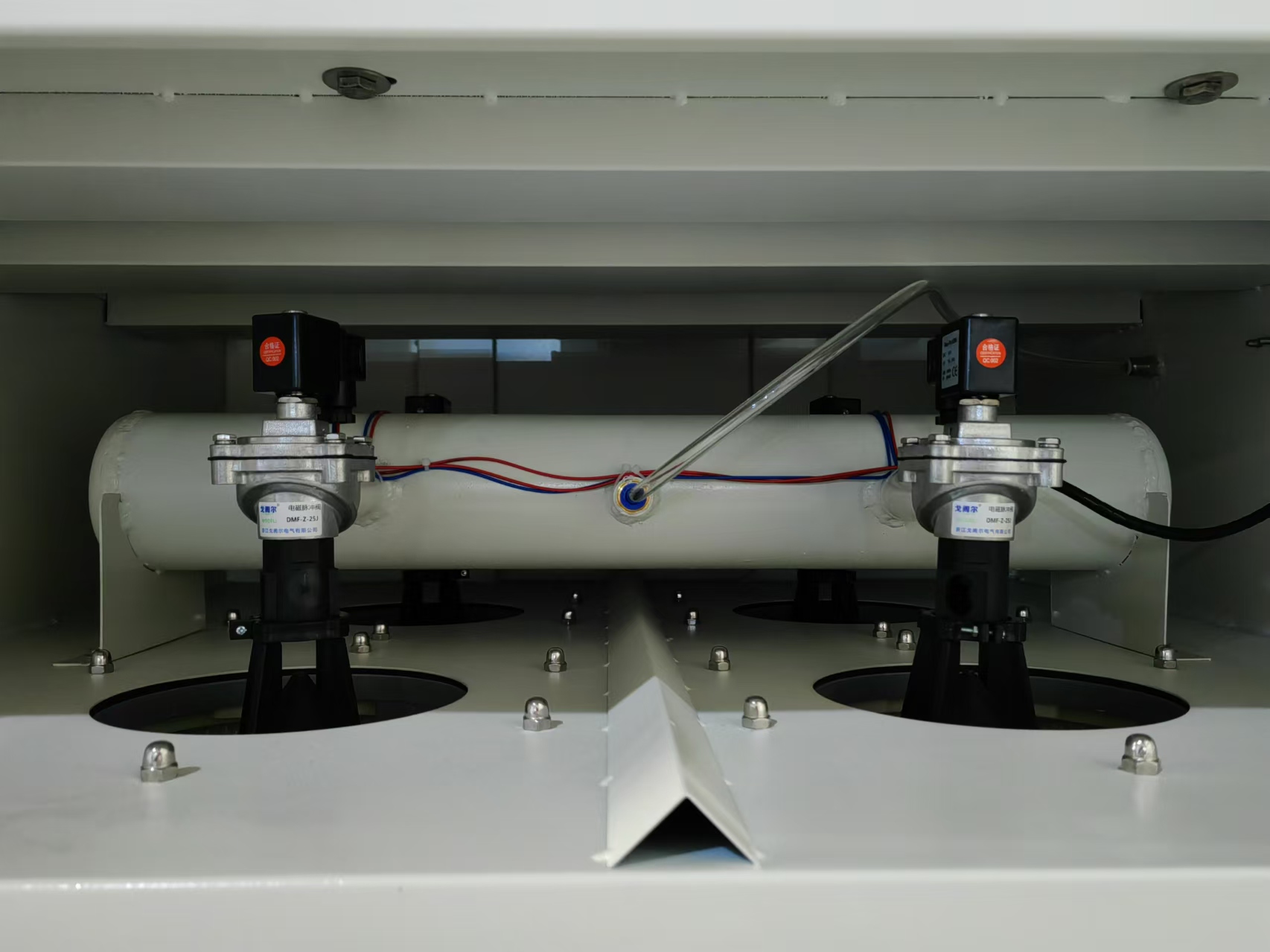

Standalone cartridge dust collector is suitable to all kinds of individual dust-producing point and multi-position central dedusting system. The dusty air enter internal case via air inlet or via opening flange into cartridge chamber. Then air is purifier in dedusting chamber and exhausted into clean room by centrifugal fan. The thin dust particle is concentrated on filter surface and keep on increasing constantly. This would cause unit resistance to increase at the same time. In order to keep unit resistance under 1000Pa and make sure unit can go on working, should regularly clear away dust particle on cartridge filter surface. Dust clearing is motorized by procedure controller to regularly start pulse valve to blow out inside 0.5-0.7Mpa compressed air(called once air) through blowing hole. This would lead to several-time surrounding air(called twice air) enter filter cartridge to rapidly expand in a moment and finally dust particle shake off with the air backward reaction to clear away dust particle.

Technical Data Sheet

Model	SCT-DC600	SCT-DC1200	SCT-DC2000	SCT-DC3000	SCT-DC4000	SCT-DC5000	SCT-DC7000	SCT-DC9000
External Dimension(WDH) (mm)	5005001450	5505501500	7006501700	8008002000	8008002000	9509502100	100012002100	120012002300
Air Volume(m3/h)	600	1200	2000	3000	4000	5000	7000	9000
Rated Power(kW)	0.75	1.5	2.2	3.0	4.0	5.5	7.5	11
Filter Cartridge Qty.	1	1	2	4	4	4	6	9
Filter Cartridge Size	325*450		325*600	325*660
Filter Cartridge Material	PU Fiber/PTFE Membrane(Optional)
Air Inlet Size(mm)	Ø100	Ø150	Ø200	Ø250	Ø250	Ø300	Ø400	Ø500
Air Outlet Size(mm)	300*300	300*300	300*300	300*300	300*300	350*350	400*400	400*400
Case Material	Powder Coated Steel Plate/Full SUS304(Optional)
Power Supply	AC220/380V, 3 phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

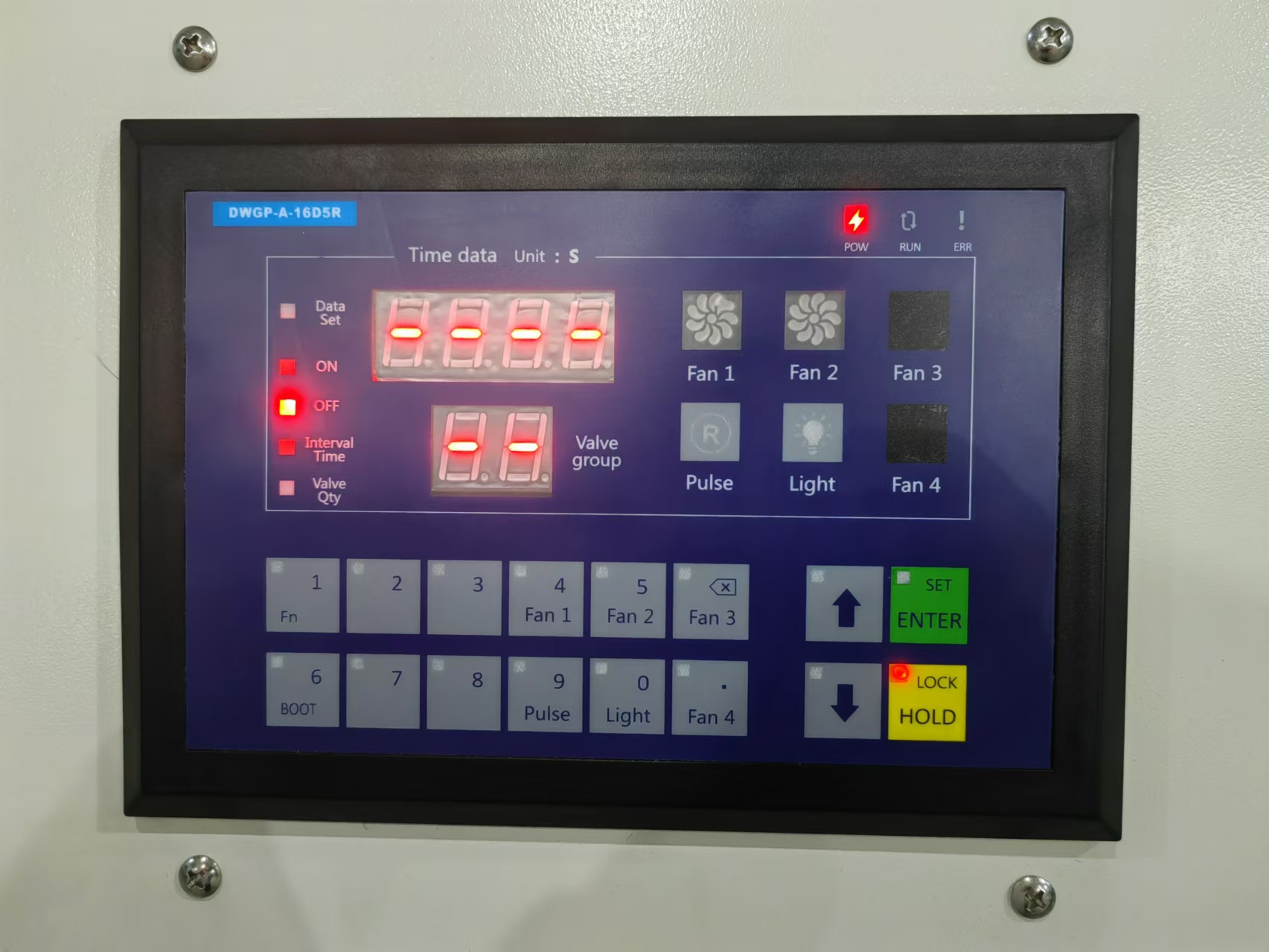

LCD intelligent microcomputer, easy to operate;
High-precision filtration and pulse jet dedusting;
Low differential pressure and low discharge;
Big effective filtration area and long service life.
