GMP Standard Clean Room Rock Wool Wall Panel
Product Description
Handmade rockwool sandwich panel is the most normal partition wall panel in clean room industry due to its excellent fireproof, heat insulated, noise reduction performance, etc. It’s made of powder coated steel sheet as the surface layer, structural rock wool as the core layer, with surrounded galvanized steel keel and special adhesive composite. The main component for rockwool is basalt, a kind of non-flammable fluffy short fine fiber, made of natural rock and mineral substance, etc. It is processed via a series of procedures such as heating, pressing, glue curing, reinforcement, etc. Further more, it can be blocked at four sides and reinforced by mechanical pressing plate, so that the panel surface is more flat and higher strength. Sometimes, the reinforcing ribs are added inisde rock wool to make sure more strength. Compared to machine-made rock wool panel, it has higher stability and better installation effect. Additionally, PVC wiring conduit can be embedded into rock wool wall panel to install switch, socket, etc in the future. The most popular color is grey white RAL 9002 and the other color in RAL also can be customized such as ivory white, sea blue, pea green, etc. Actually, non-standard panels of various specifications are available according to design requirements.
Technical Data Sheet
| Thickness | 50/75/100mm(Optional) |
| Width | 980/1180mm(Optional) |
| Length | ≤6000mm(Customized) |
| Steel Sheet | Powder coated 0.5mm thickness |
| Weight | 13 kg/m2 |
| Density | 100 kg/m3 |
| Fire Rate Class | A |
| Fire Rated Time | 1.0 h |
| Heat Insulation | 0.54 kcal/m2/h/℃ |
| Noise Reduction | 30 dB |
Remark: all kinds of clean room products can be customized as actual requirement.
Product Features
Meet with GMP standard, flush with doors, windows, etc;
Fire rated, sound and heat insulated, shockproof, dust free, smooth, corrosion resistant;
Modular structure, easy to install and maintain;
Customized and cuttable size available, easy to adjust and change.

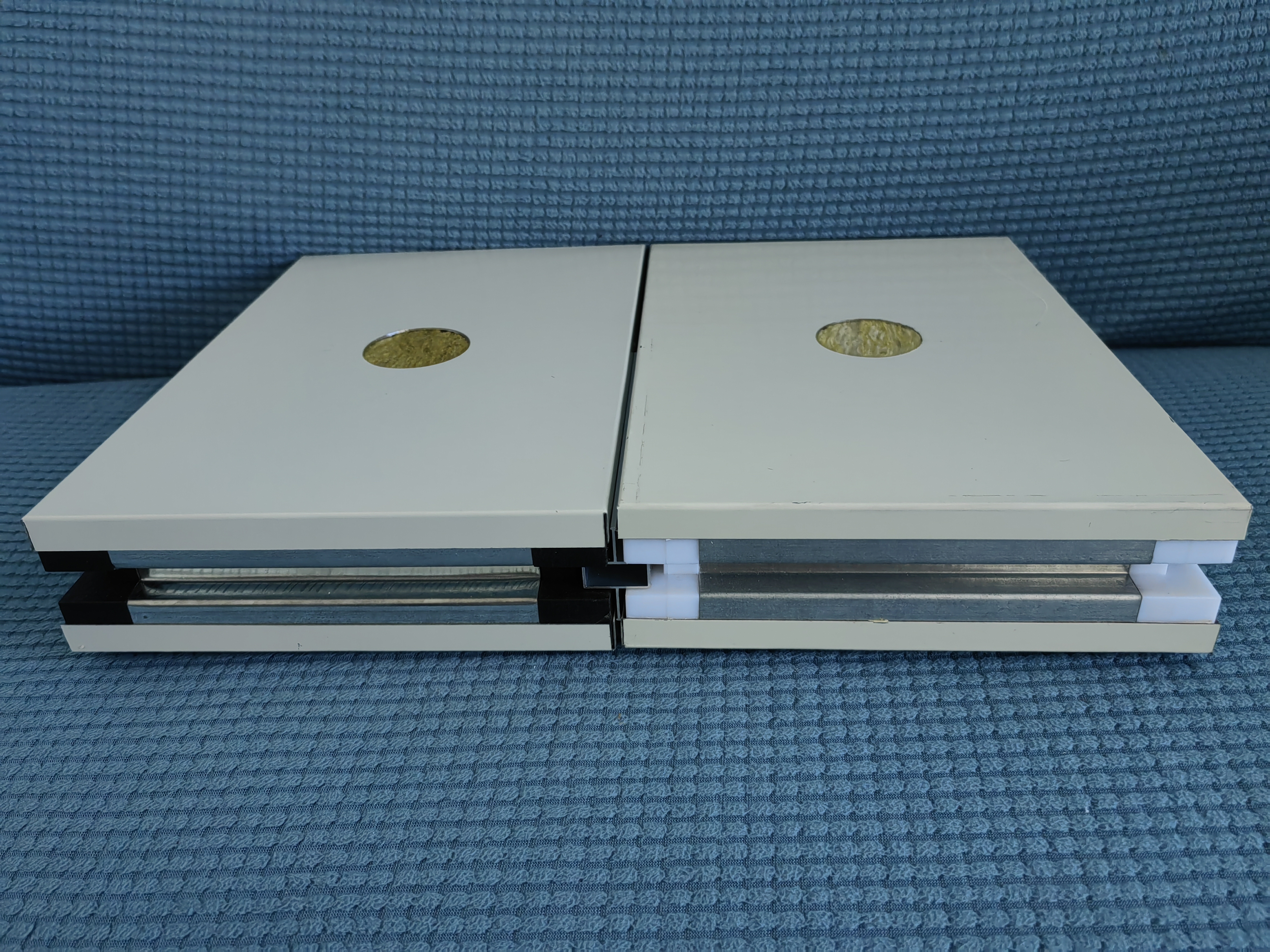

Product Details

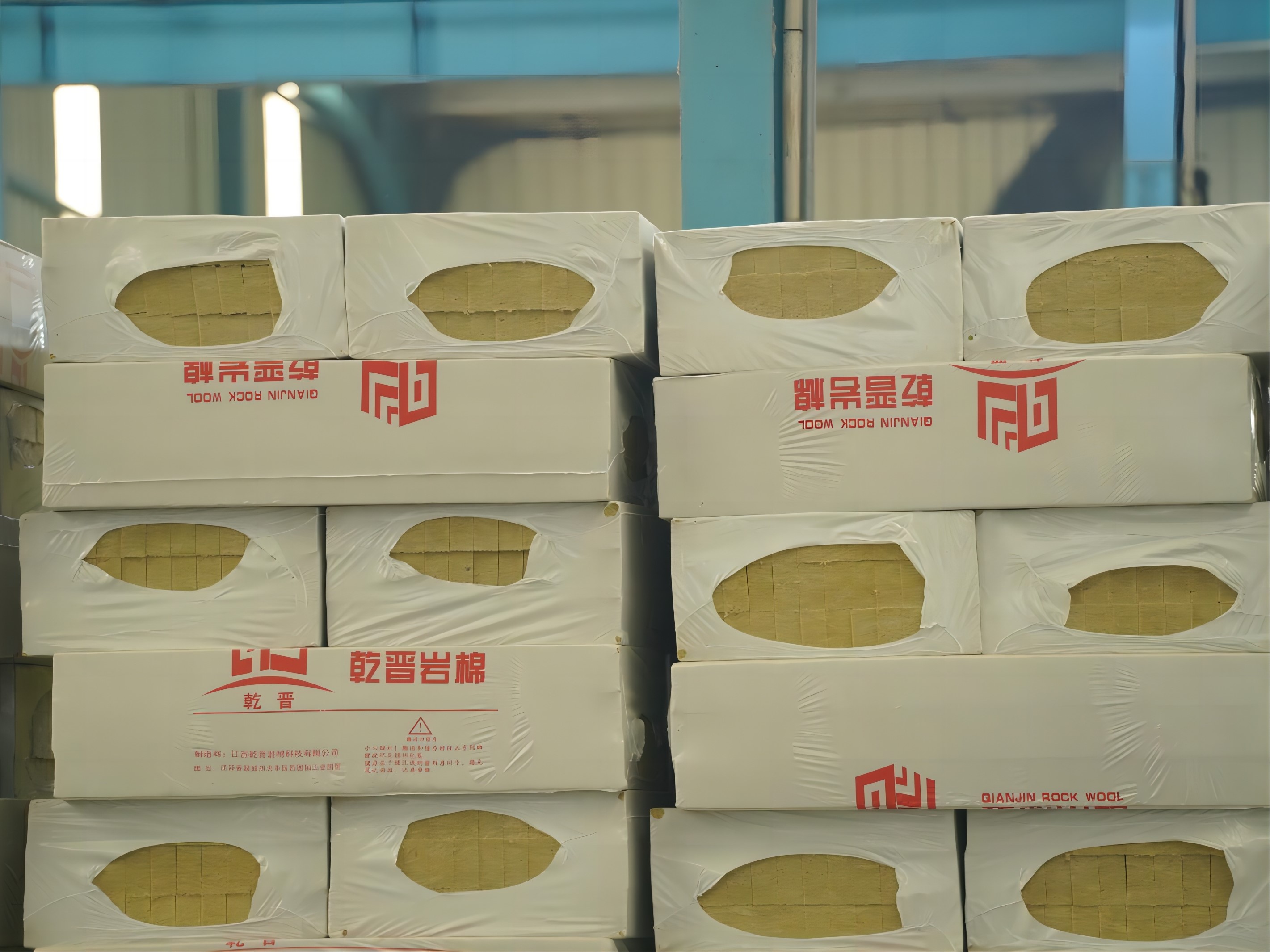

High-quality rock wool material

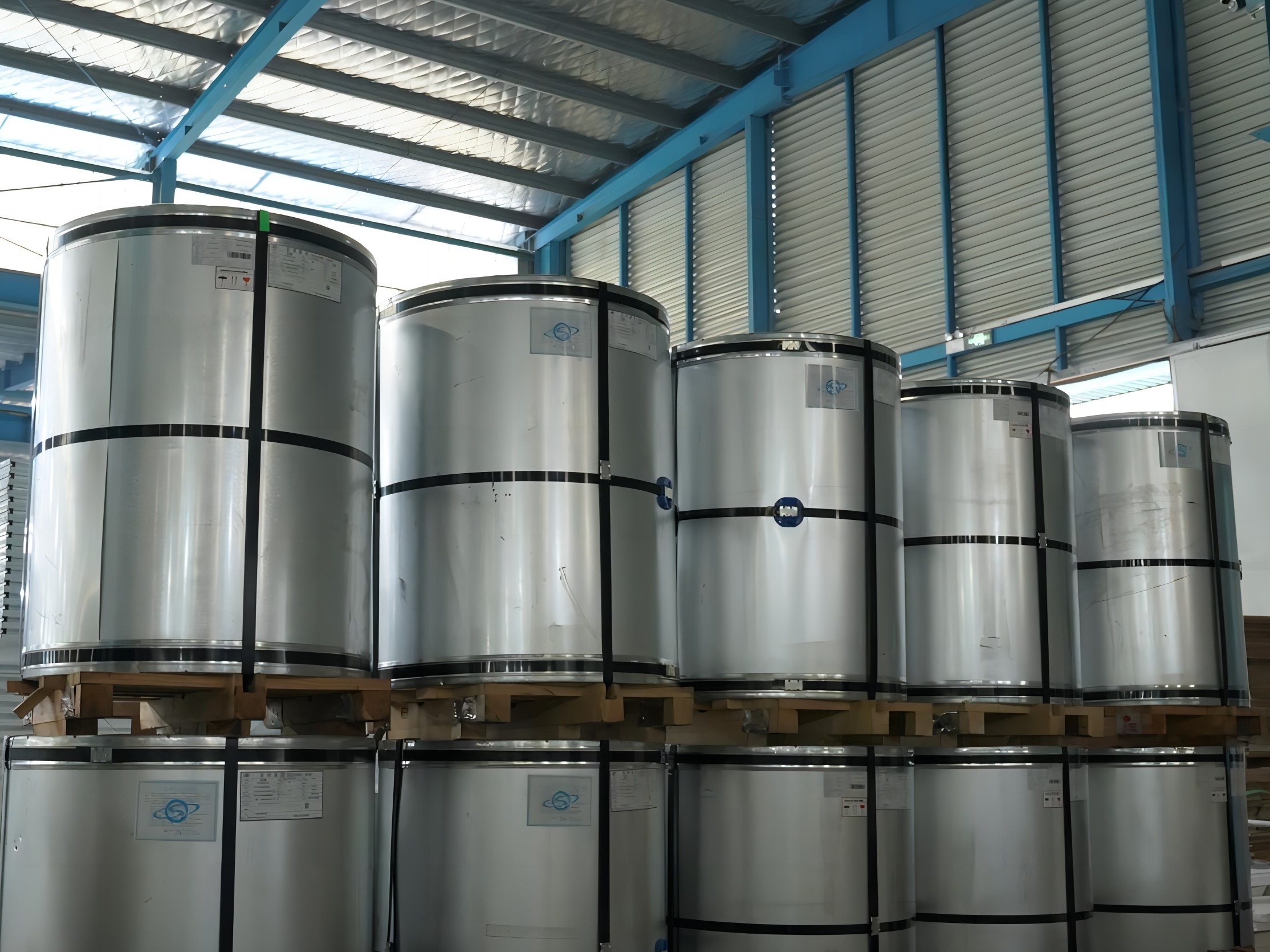

Certified rolled steel sheet

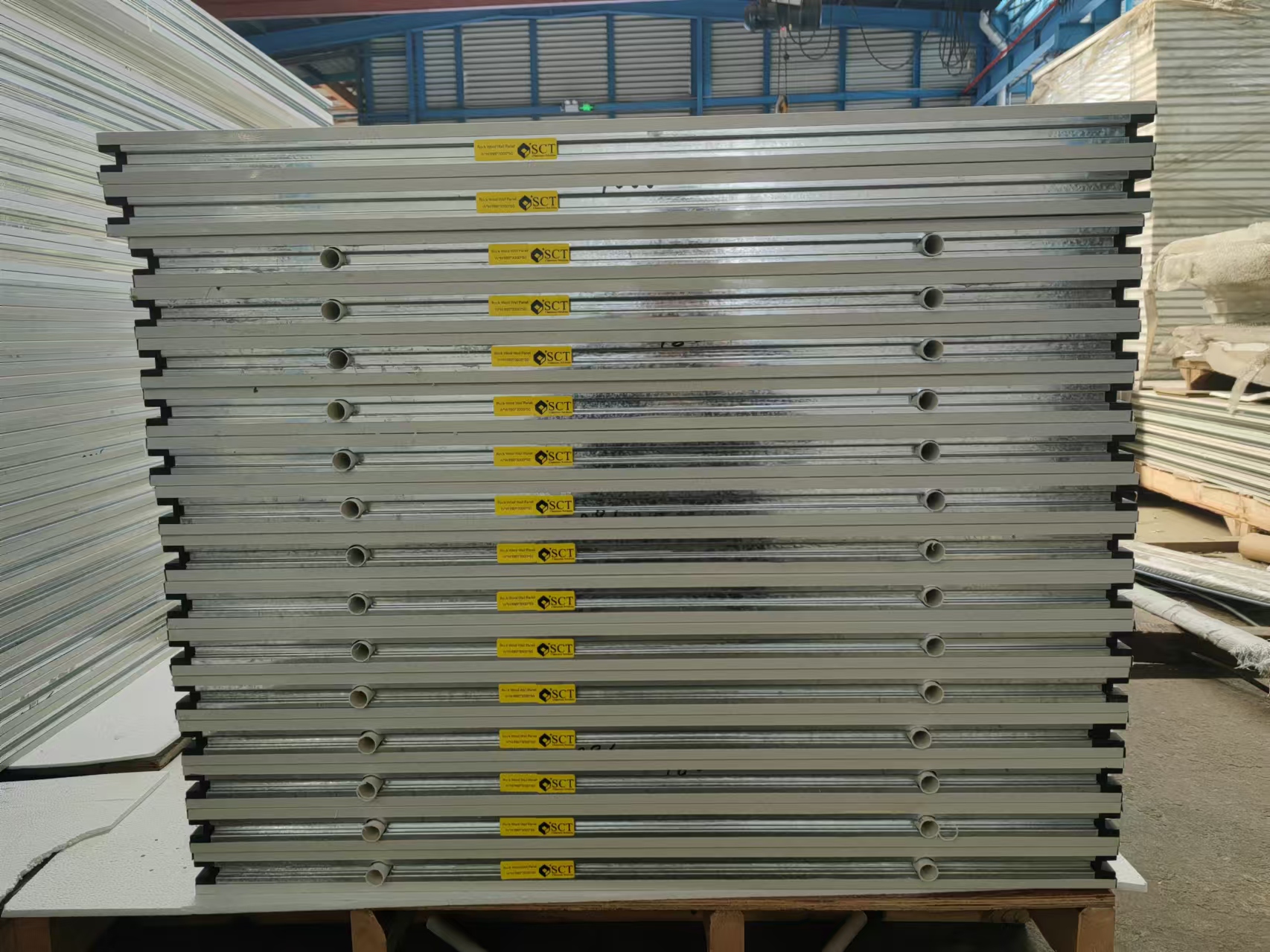

Embedded PVC conduit
"+" shaped aluminum profile connector
Reinforcing rib

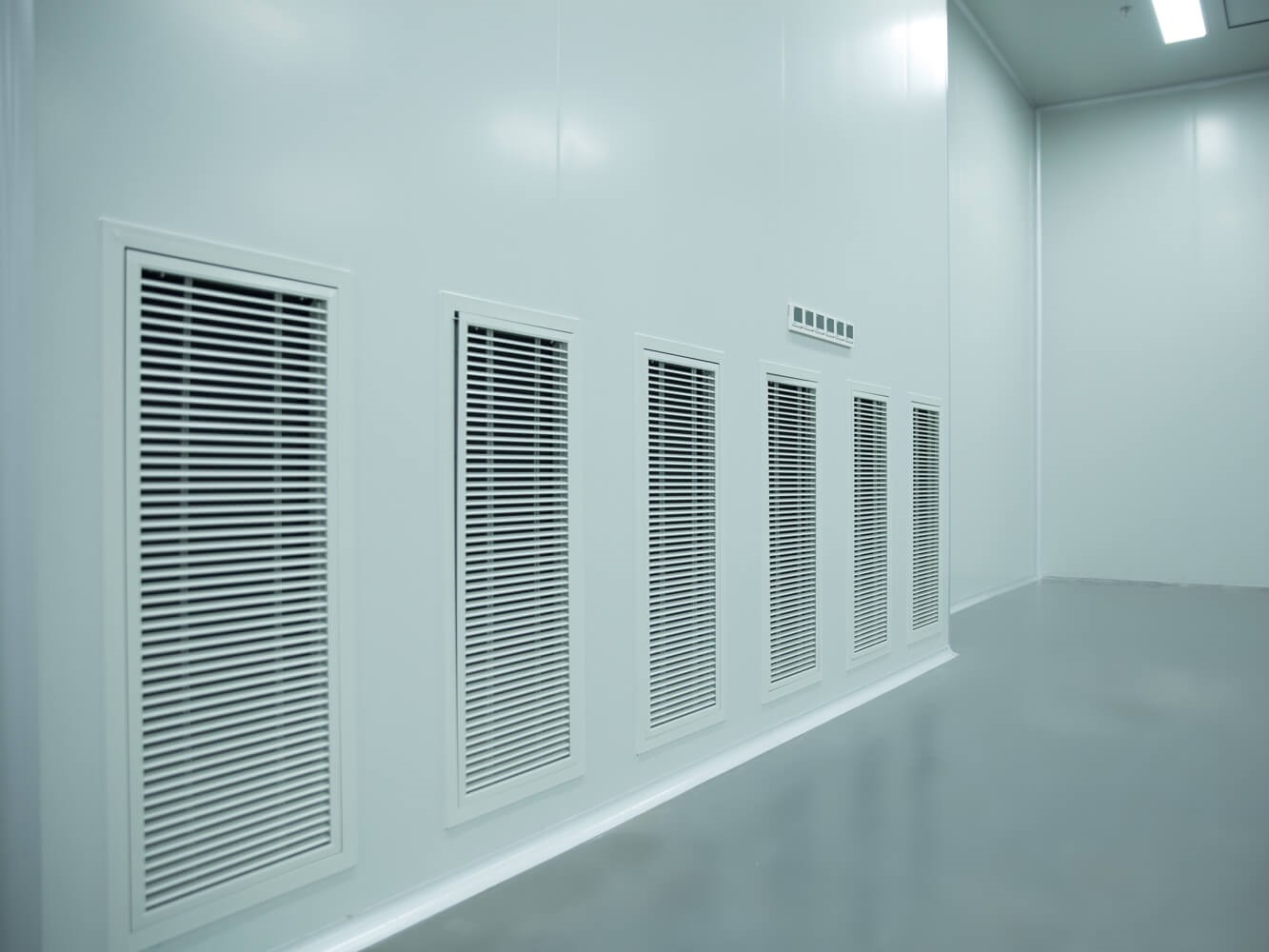

Flexible makeout for air outlet, etc

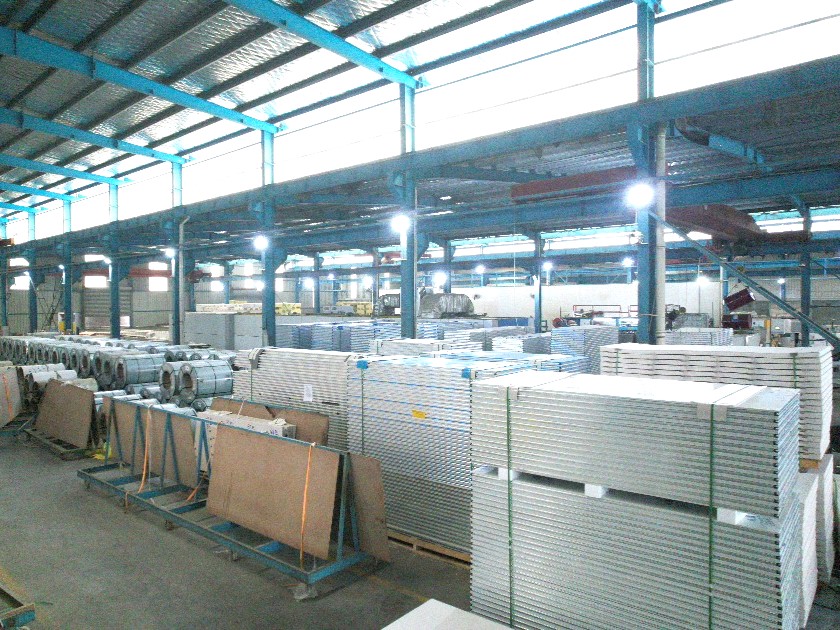

Production Facility
Automatic production line

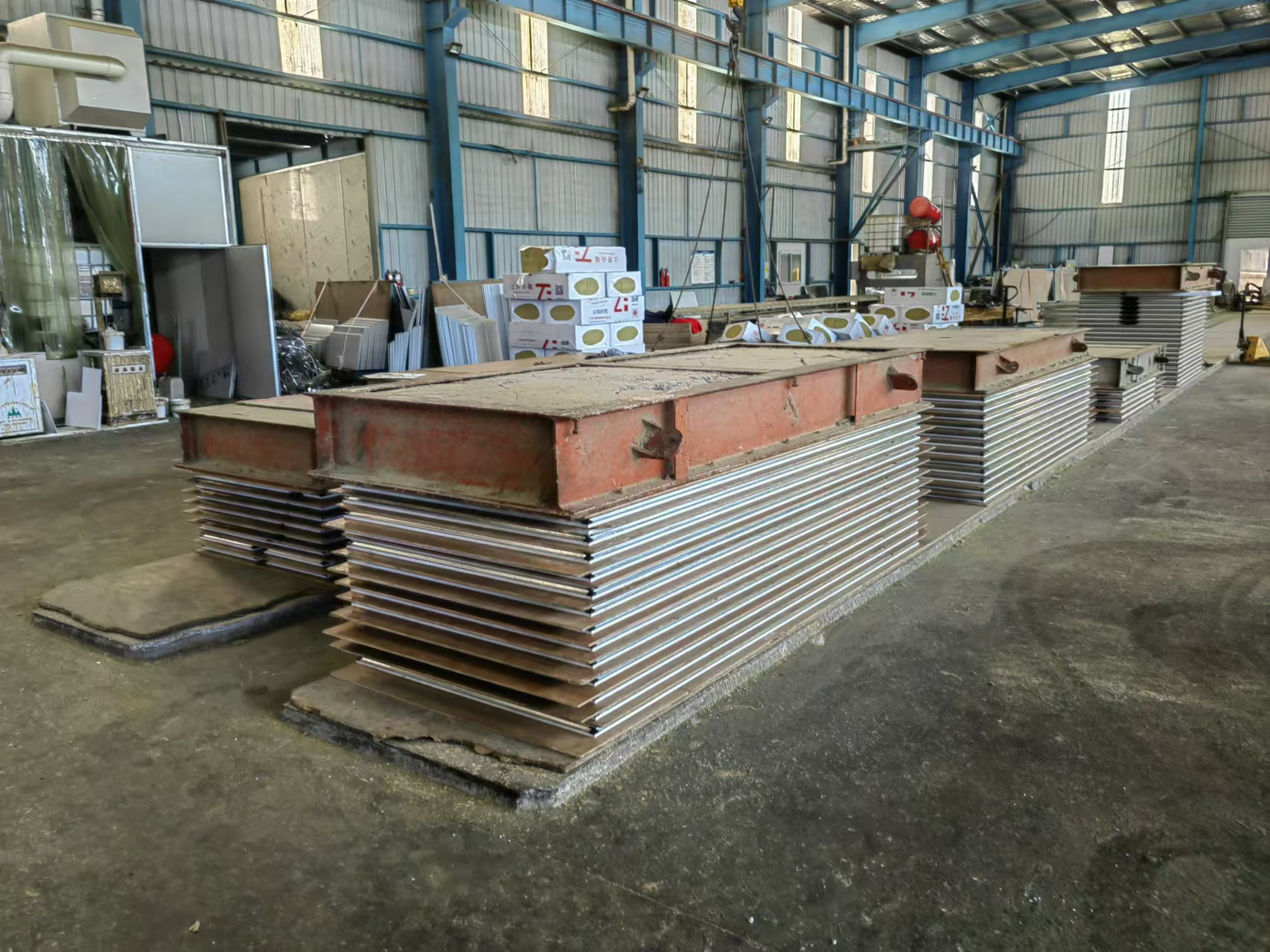

Mechanical pressing plate

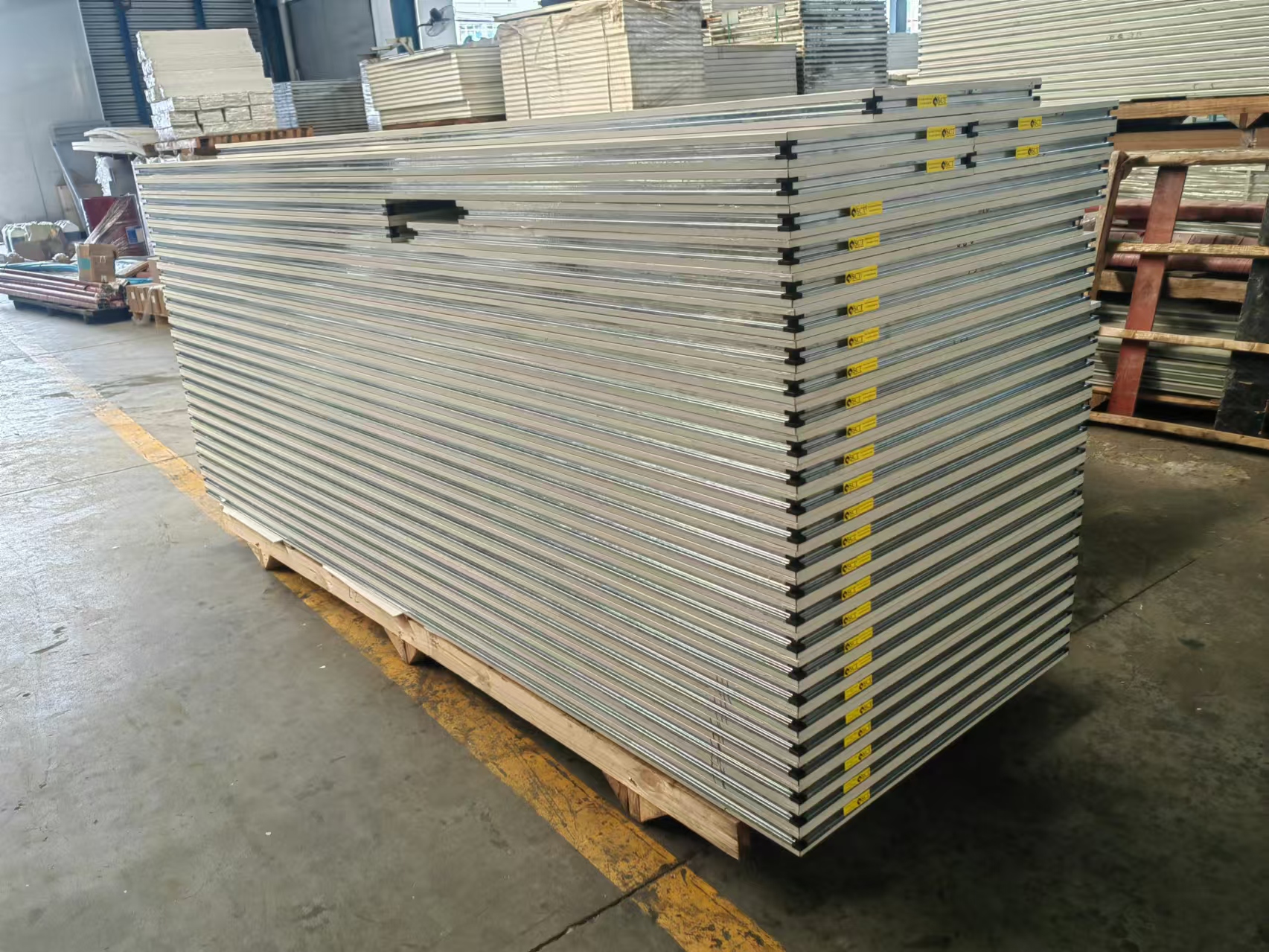

Clean room panel stack

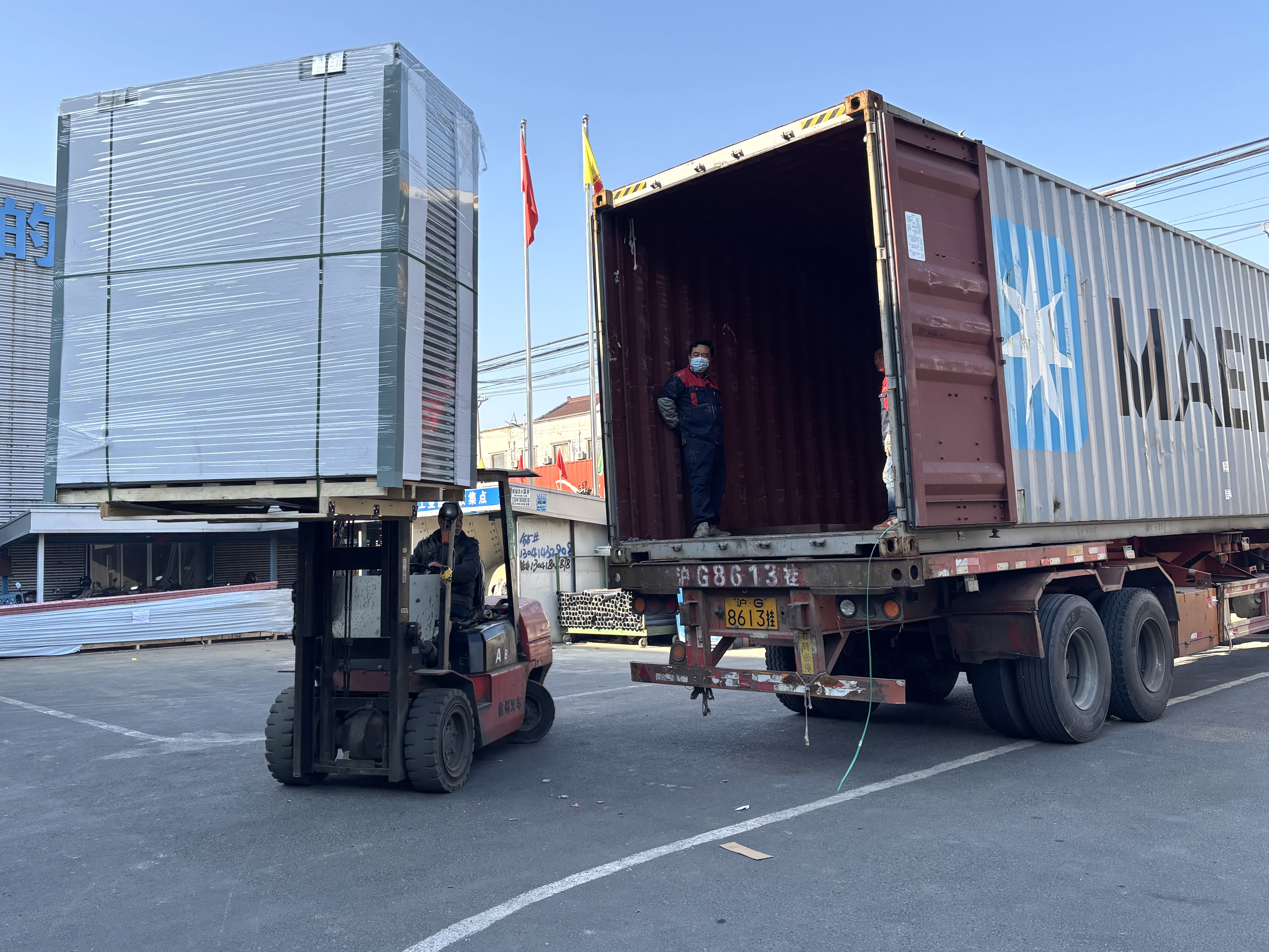

Packing&Shipping
The size of each panel is marked in label and the quantity of each panel stack is marked, too. The wooden tray is put at the bottom to support clean room panels. It is wrapped with protective foam and film and even have thin aluminum sheet to cover its edge. Our experienced labors can work efficiently to load all items into containers. We will prepare air bag in the middle of 2 stacks of clean room panels and use tension ropes to strengthen some packages to avoid crash during transportation.
Application

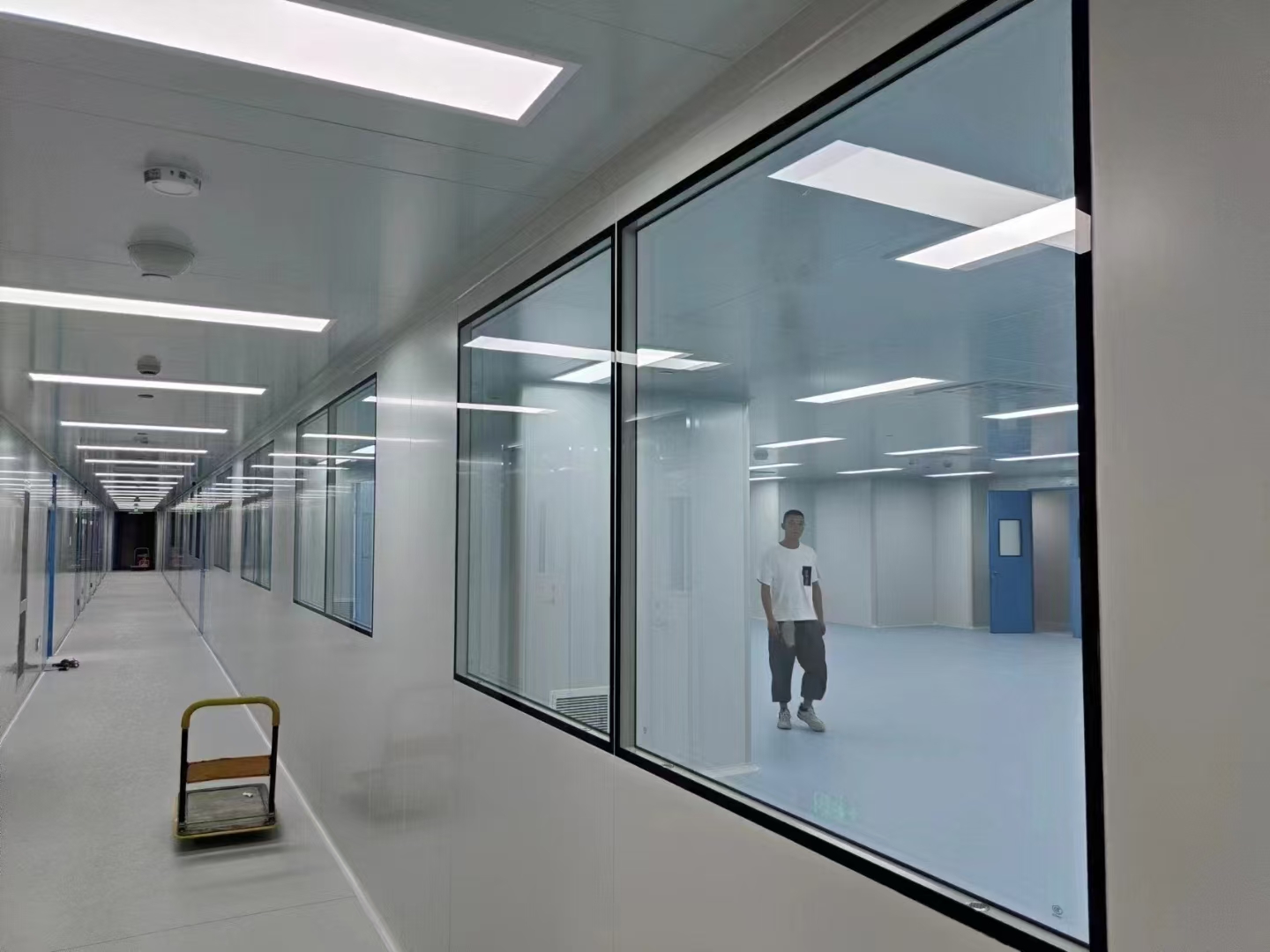

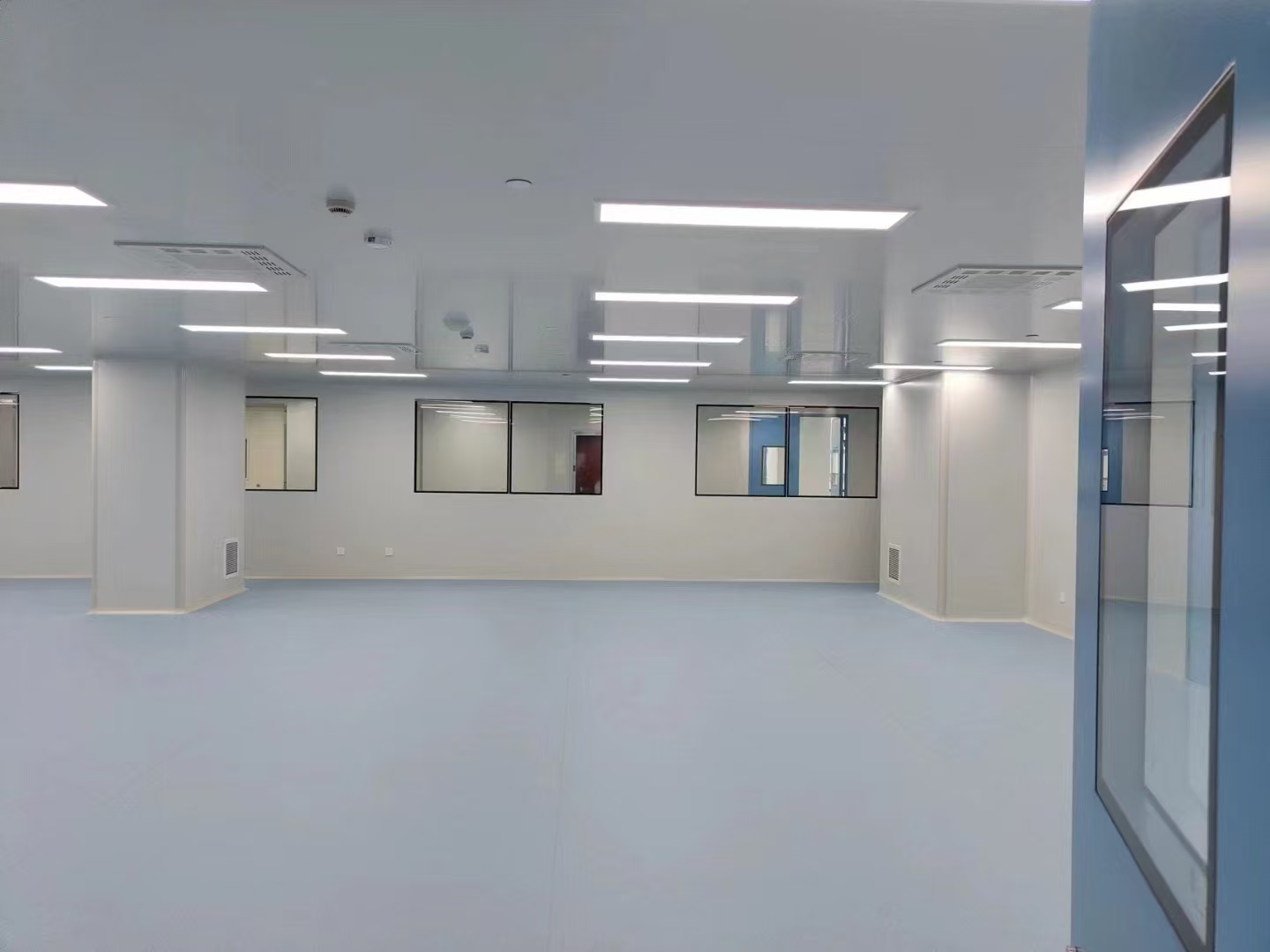

Widely used in pharmaceutical industry, medical operation room, laboratory, electronic industry, food industry, etc.
FAQ
Q: What's the steel surface sheet thickness of rock wool clean room wall panel?
A: The standard thickness is 0.5mm but it also can be customized as the client requirement.
Q: What's the standard thickness of rock wool clean room partition walls?
A: The standard thickness is 50mm, 75mm and 100mm.
Q: How to remove or adjust modular clean room walls?
A: Each panel can't be removed and inserted individually. If the panel is not at the end, you have to remove its nearby panels at first.
Q: Will you make openings for switch, socket, etc in your factory?
A: It would be better if you make opening on site because the position of the opening can be decided finally by yourself when you do clean room construction.
