GMP Standard Cleanroom Stainless Steel Pass Box

Short Description:

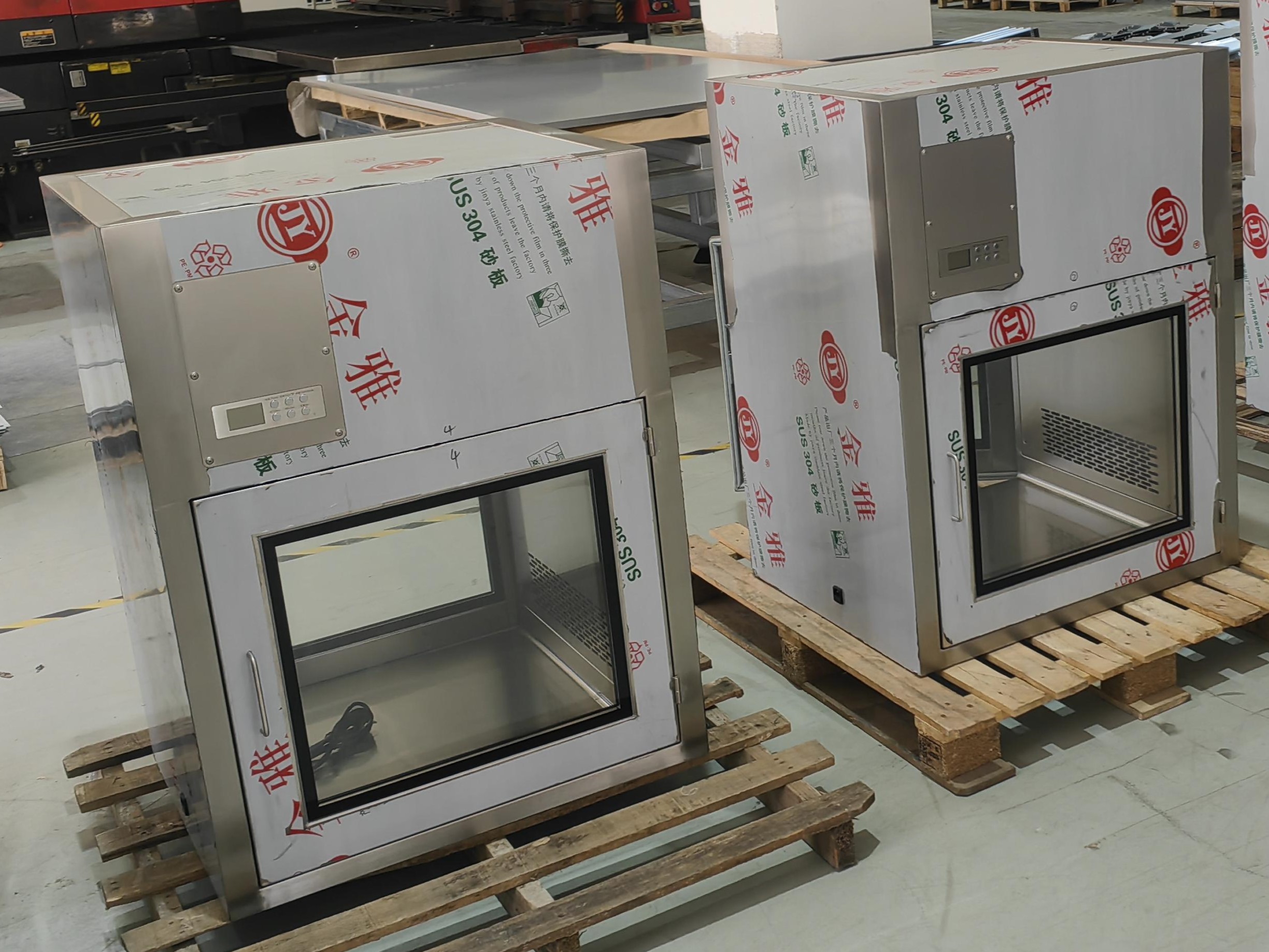

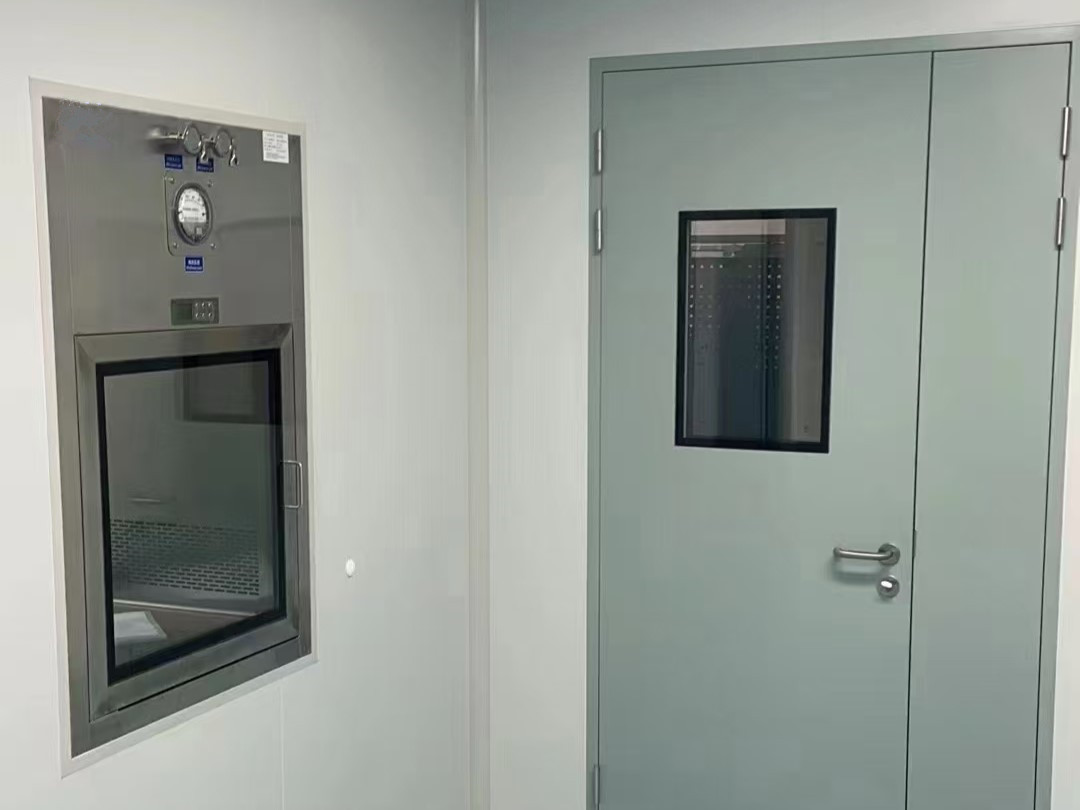

Pass box is a kind of auxiliary equipment for the clean room, mainly used to transfer small items between clean areas and between clean areas and non-clean areas, so as to reduce the number of times the clean room door is opened, reduce the degree of pollution to the clean room, effectively prevent cross contamination, and is equipped with an electronic interlocking device. The difference between static pass box and dynamic pass box is that dynamic pass box can remove dust carried on the goods; for places where the cleanliness level requirements are not very high, static pass box can be used, and for clean workshops with high requirements such as food workshops, dynamic pass box is recommended.

Send email to us

Product Detail

Product Tags

Product Description

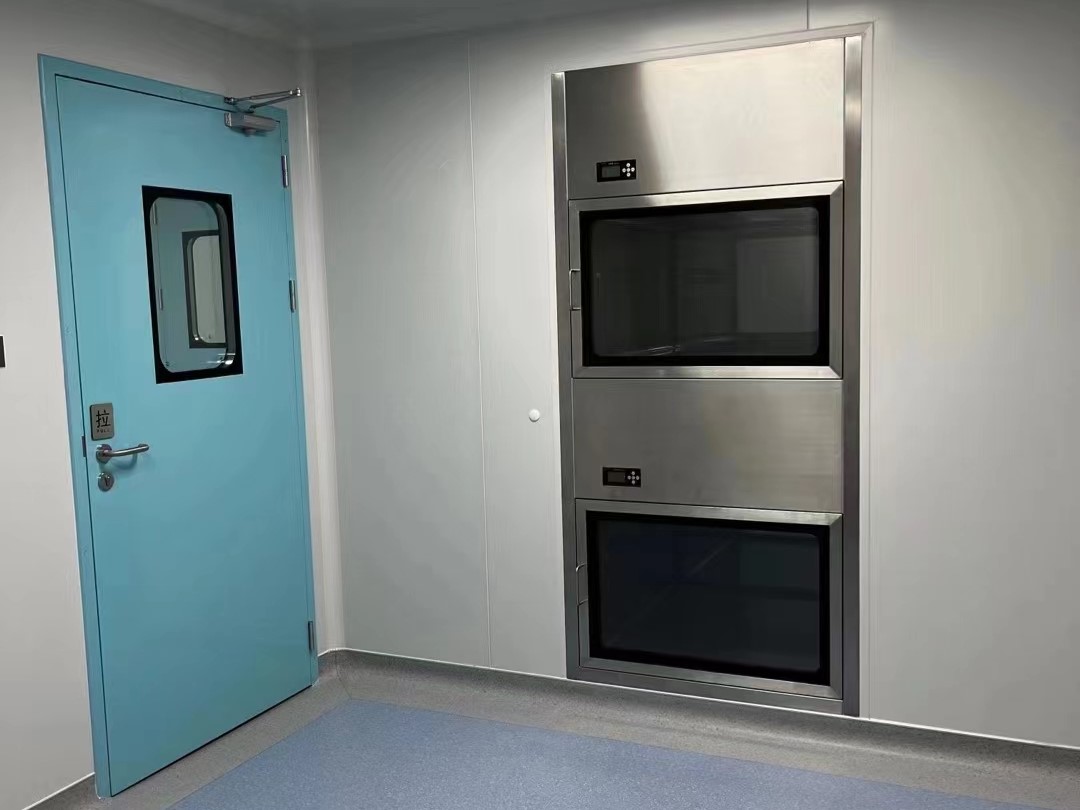

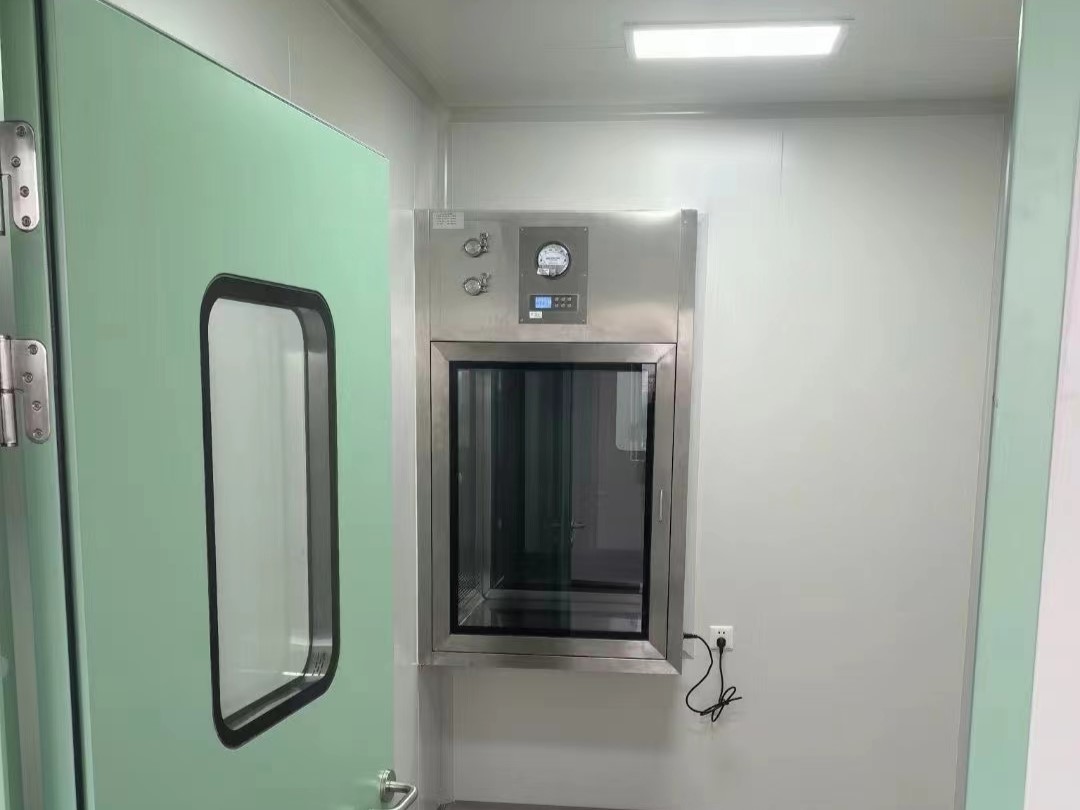

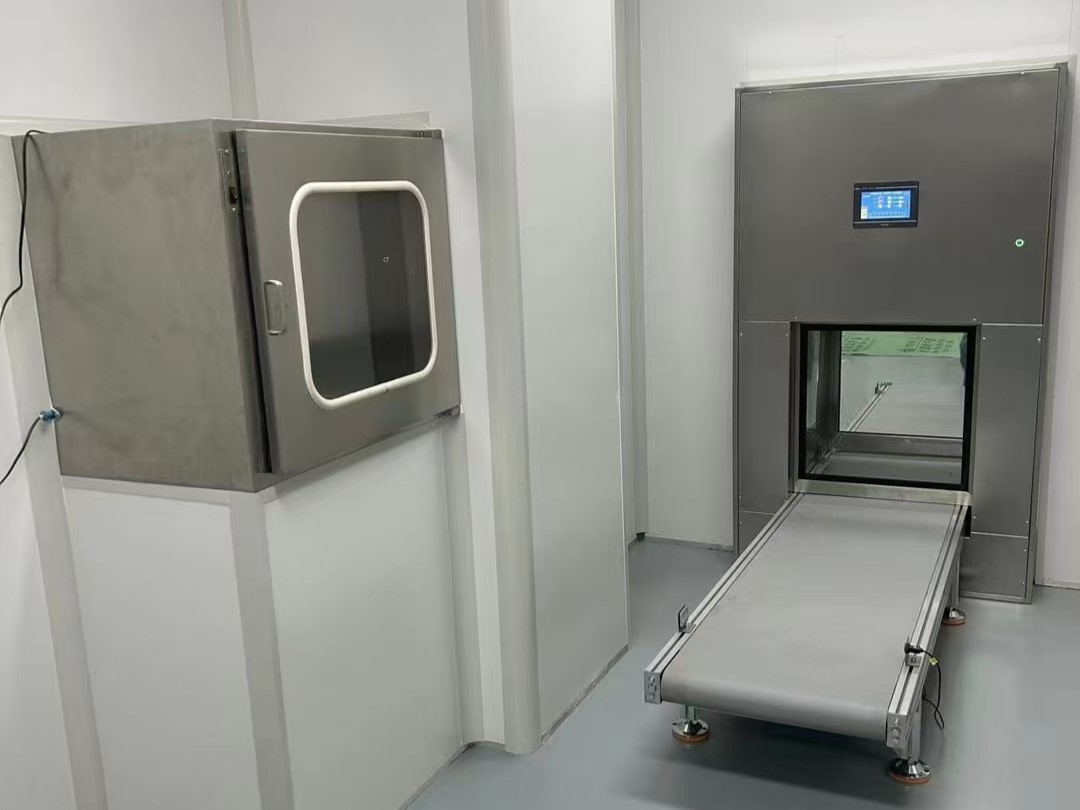

Pass box is used to block the air flow to clean room when transferring materials and to purify the materials entering clean room, so as to minimize the environmental pollution of the clean room caused by the dust brought into clean room by the materials. It is installed between clean area and non-clean area or between different levels in clean area as air lock for materials to enter and exit clean room. It is mainly used in semiconductors, liquid crystal displays, optoelectronics, precision instruments, chemistry, biomedicine, hospitals, food, research institutes, universities, aerospace, automobiles, coating, printing and other fields.

Technical Data Sheet

Model	SCT-PB-M555	SCT-PB-M666	SCT-PB-S555	SCT-PB-S666	SCT-PB-D555	SCT-PB-D666
External Dimension(WDH)(mm)	685570590	785670690	700570650	800670750	7005701050	8006701150
Internal Dimension(WDH)(mm)	500500500	600600600	500500500	600600600	500500500	600600600
Type	Static(without HEPA filter)				Dynamic(with HEPA filter)

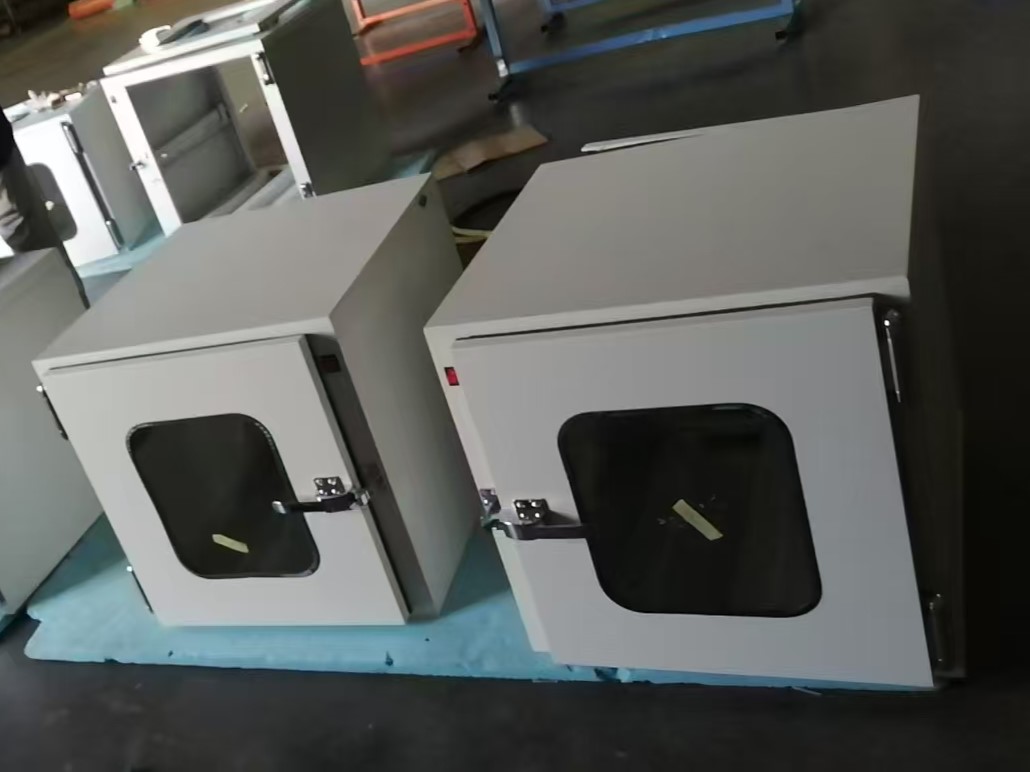

Interlock Type	Mechanical Interlock		Electronic Interlock
Lamp	Lighting Lamp/UV Lamp(Optional)
Case Material	Powder Coated Steel Plate Outside and SUS304 Inside/Full SUS304(Optional)
Power Supply	AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Product Features

1. Double-layer hollow glass door, embedded flat angle door (beautiful and dust-free), internal arc corner design, dust-free and easy to clean.

2. ade of 304 stainless steel plate, electrostatic spraying on the surface, the inner tank is made of stainless steel, flat, smooth and wear-resistant, and anti-fingerprint treatment on the surface.

3. Embedded UV lamp ensures safe use, adopts high-quality waterproof sealing strips, and has high sealing performance.

4. The electronic interlock door is a component of the pass box. When one door is opened, the other door cannot be opened. The main function of this is to better remove dust and sterilize the items passed through.
