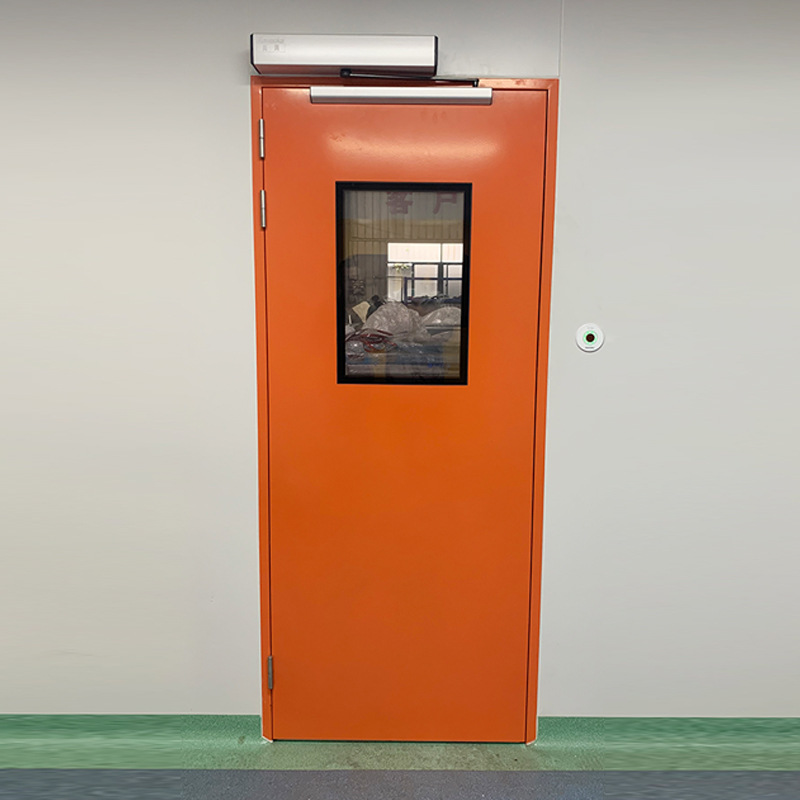

GMP Modular Cleanroom Steel Door
Application

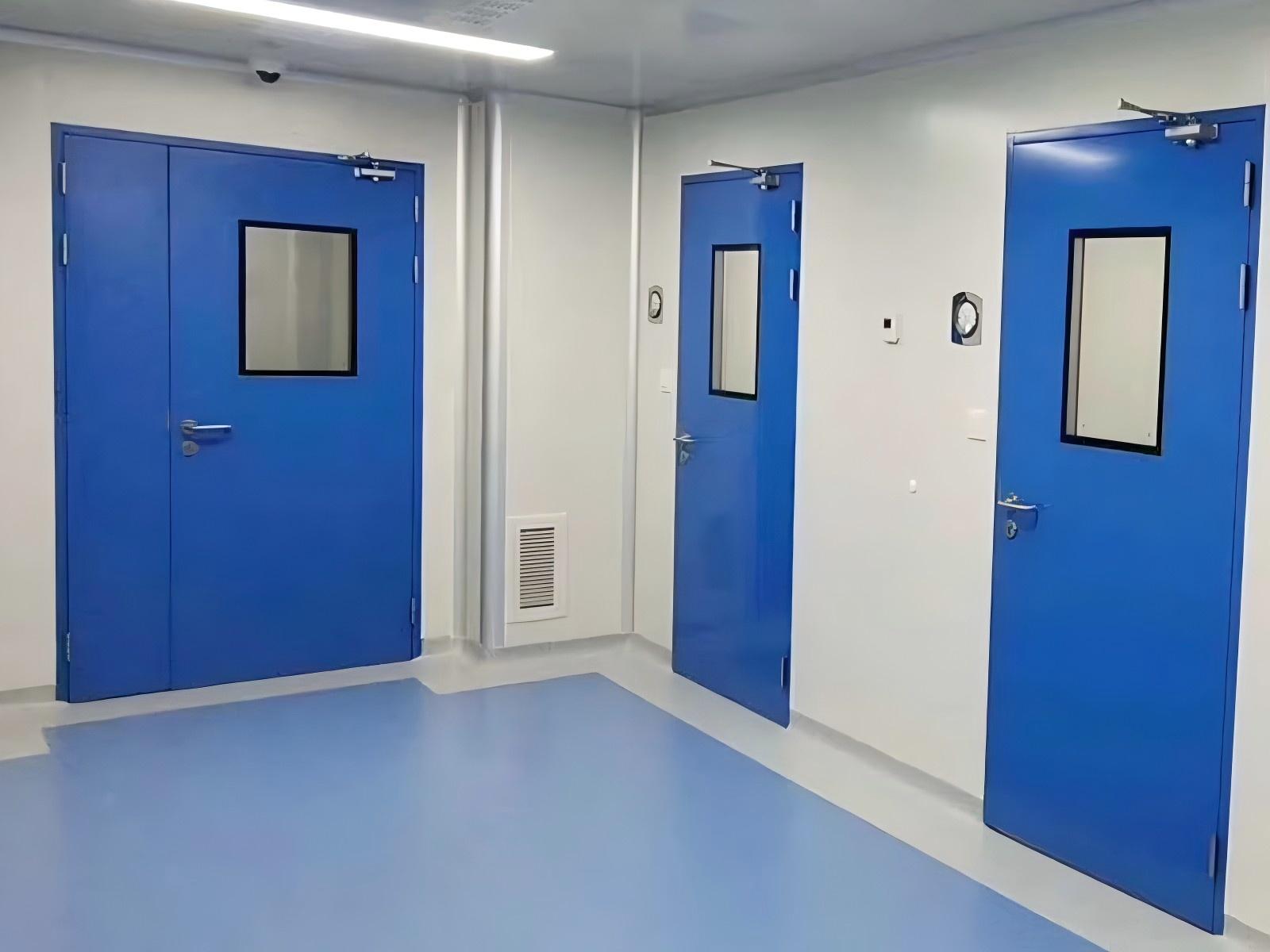

It is widely used in cleanroom engineering field of various industries, such as electronics industry, microbiological laboratories, animal laboratories, optical laboratories, wards, modular operation rooms, pharmaceutical industry, food industry and other places with purification requirements.
Technical Data Sheet
|
Type |
Single Door |
Unequal Door |
Double Door |
|
Width |
700-1200mm |
1200-1500mm |
1500-2200mm |
|
Height |
≤2400mm(Customized) |
||
|
Door Leaf Thickness |
50mm |
||
|
Door Frame Thickness |
The same as the wall. |
||
|
Door Material |
Powder Coated Steel Plate(1.2mm door frame and 1.0mm door leaf) |
||
|
View Window |
Double 5mm tempered glass(right and round angle optional; with/without view window optional) |
||
|
Color |
Blue/Grey White/Red/etc(Optional) |
||
|
Additional Fittings |
Door Closer, Door Opener, Interlock Device, etc |
||
Remark: all kinds of clean room products can be customized as actual requirement.
Characteristics
1. Durable
Steel clean room door has the characteristics of friction resistance, collision resistance, antibacterial and mildew inhibition, which can effectively solve the problems of frequent use, easy collision and friction. The internal honeycomb core material is filled, and it is not easy to be dented and deformed in collision.
2. Good user experience

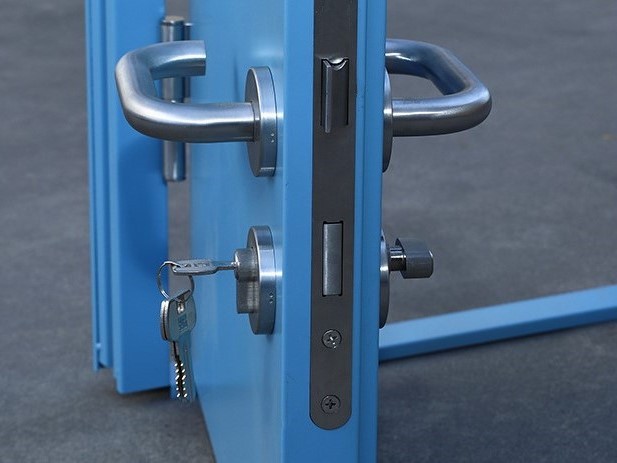

The door panels and accessories of steel clean room doors are durable, reliable in quality, and easy to clean. The door handles are designed with arcs in structure, which are comfortable to the touch, durable, easy to open and close, and quiet to open and close.
3. Environmentally friendly and beautiful

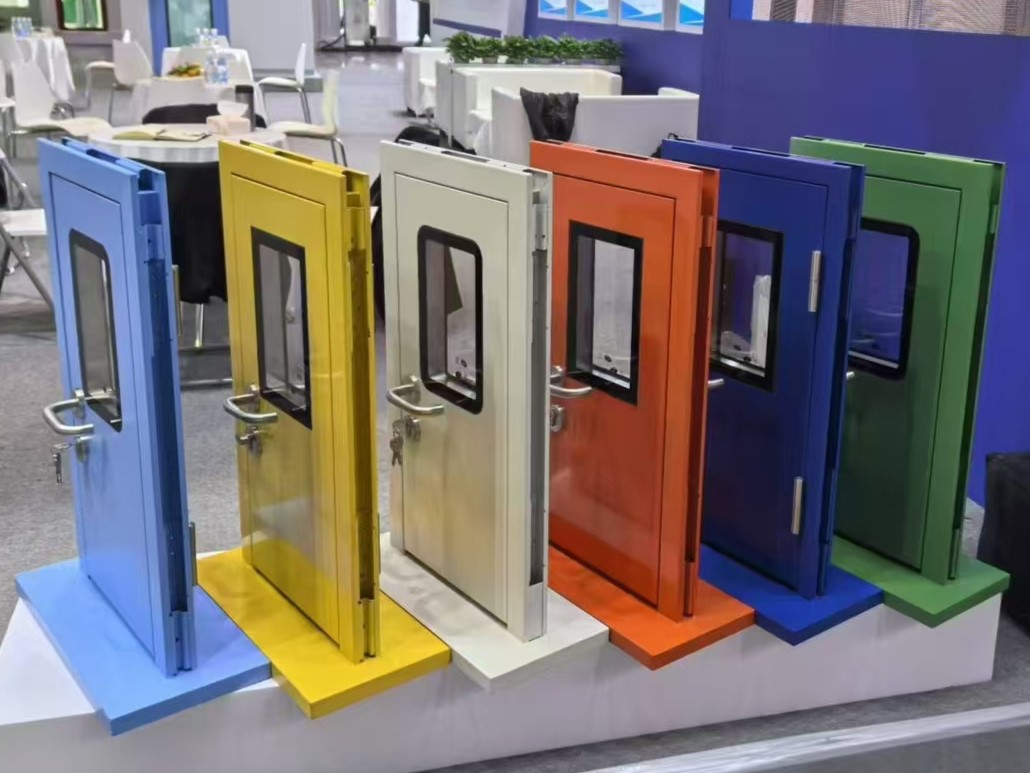

The door panels are made of galvanized steel plates, and the surface is electrostatically sprayed. The styles are rich and varied, and the colors are rich and bright. The required colors can be customized according to the actual style. The windows are designed with double-layer 5mm hollow tempered glass, and the sealing on all four sides is complete.
Production

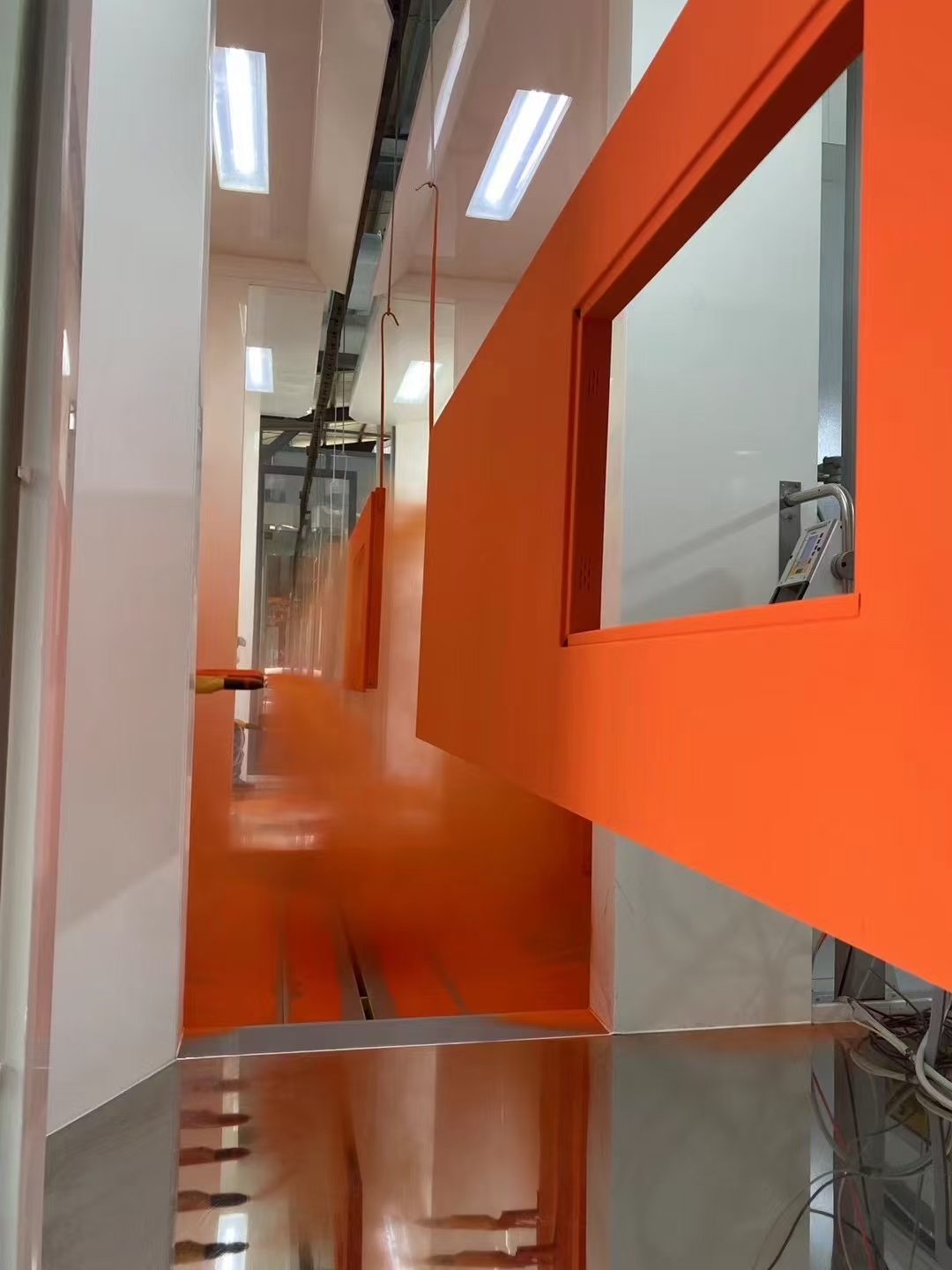

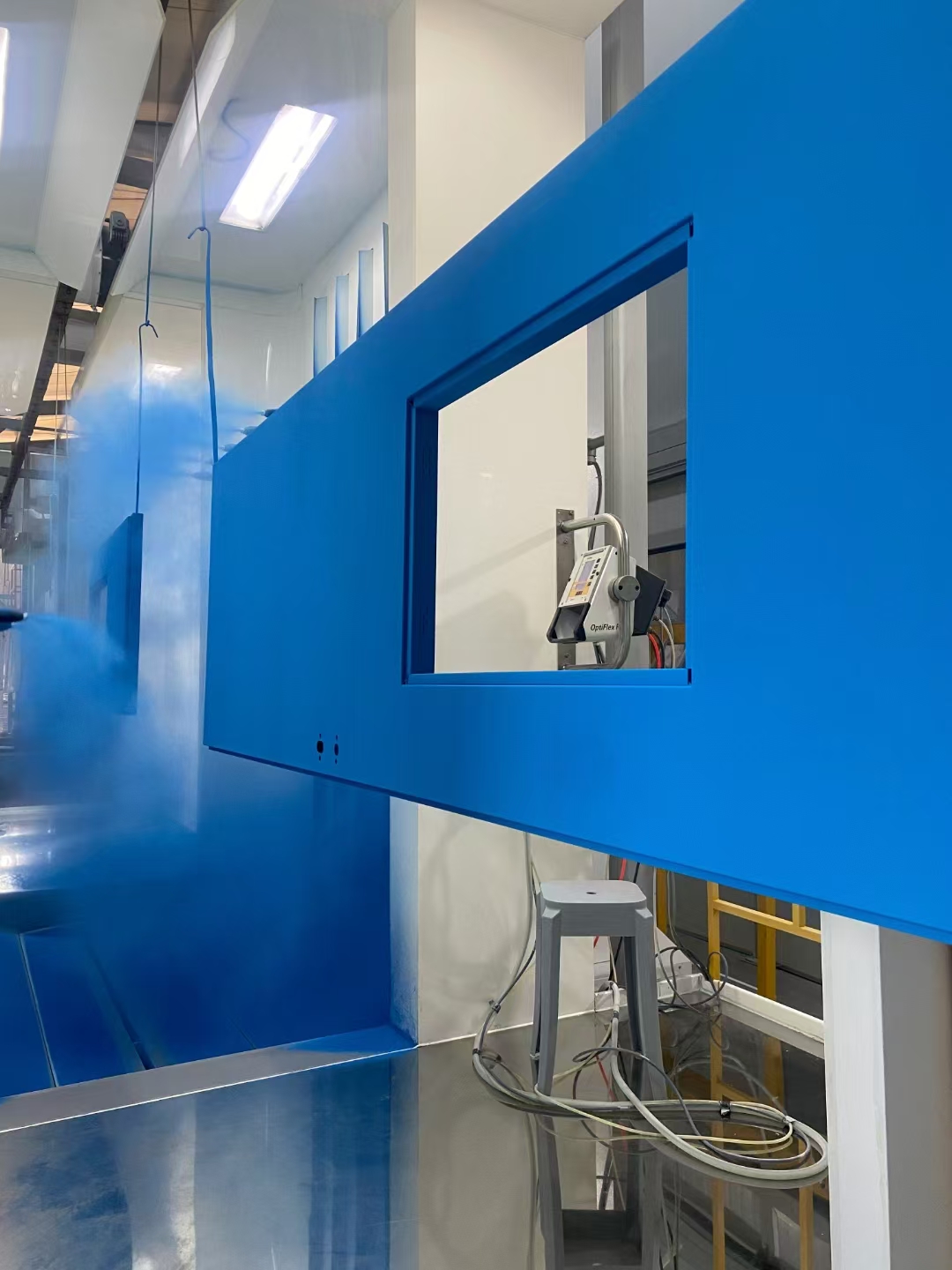

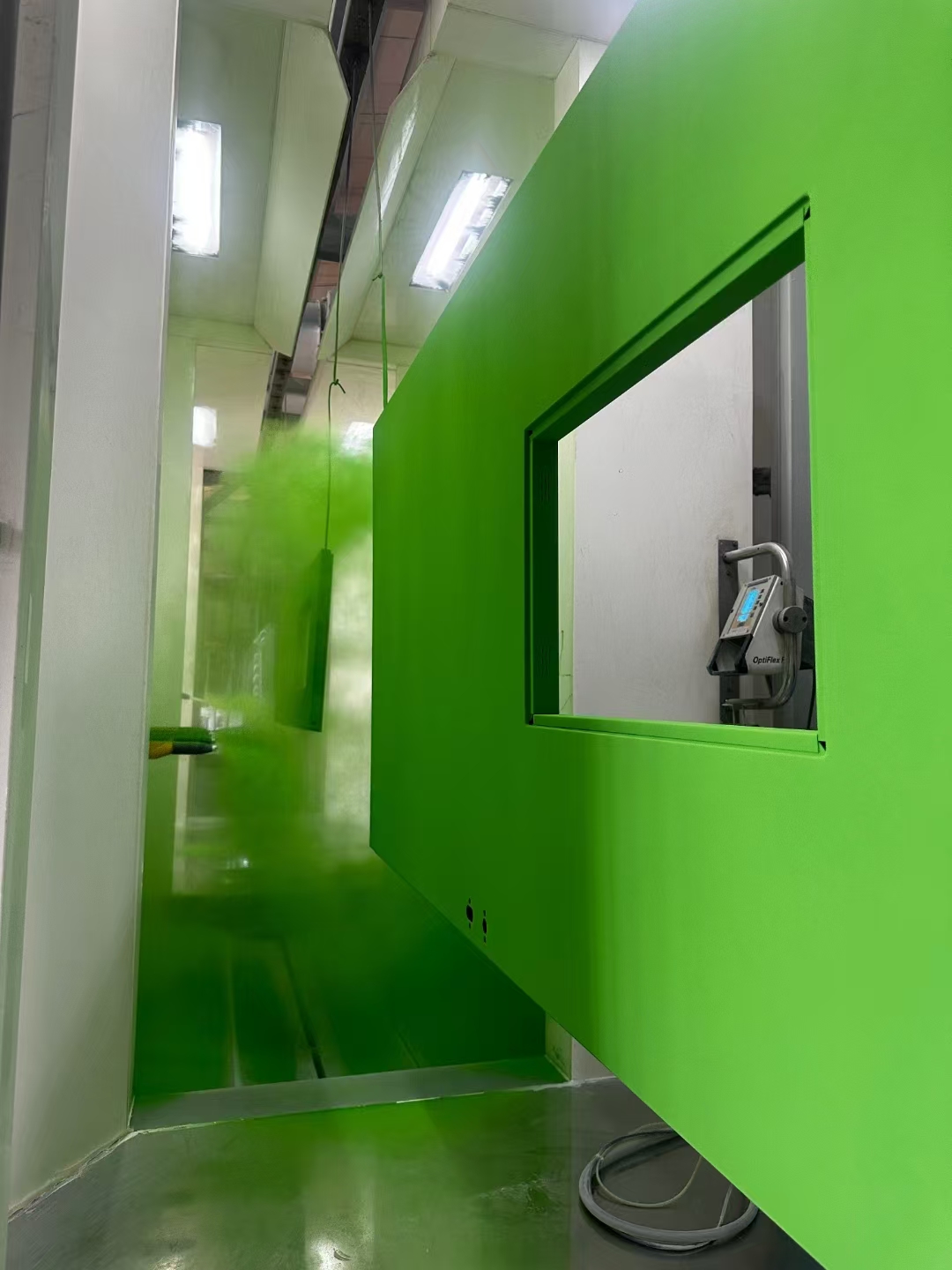

The clean room swing door is processed via a series of strict procedures such as folding, pressing and glue curing, powder injection, etc. Usually powder coated galvanized(PCGI) steel sheet is usually used for door materail, and use lightweight paper honeycomb as core material.
Installation
When installing cleanroom steel doors, use a level to calibrate the door frame to ensure that the upper and lower widths of the door frame are the same, the error is recommended to be less than 2.5 mm, and the diagonal error is recommended to be less than 3 mm. The clean room swing door should be easy to open and tightly closed. Check whether the door frame size meets the requirements, and check whether the door has bumps, deformation, and deformation parts are lost during transportation.
FAQ
Q: Is it available to install this cleanroom door with brick walls?
A: Yes, it can be connected with on-site brick walls and other kinds of walls.
Q: How to make sure cleanroom steel door airtight?
A: There is an adjustable seal at the bottom which can be up-and-down to make sure its airtightness.
Q: Is it OK to be without view window for airtight steel door?
A: Yes, it is OK.
Q: Is this clean room swing door fire rated?
A: Yes, it can be infilled with rock wool to be fire rated.
