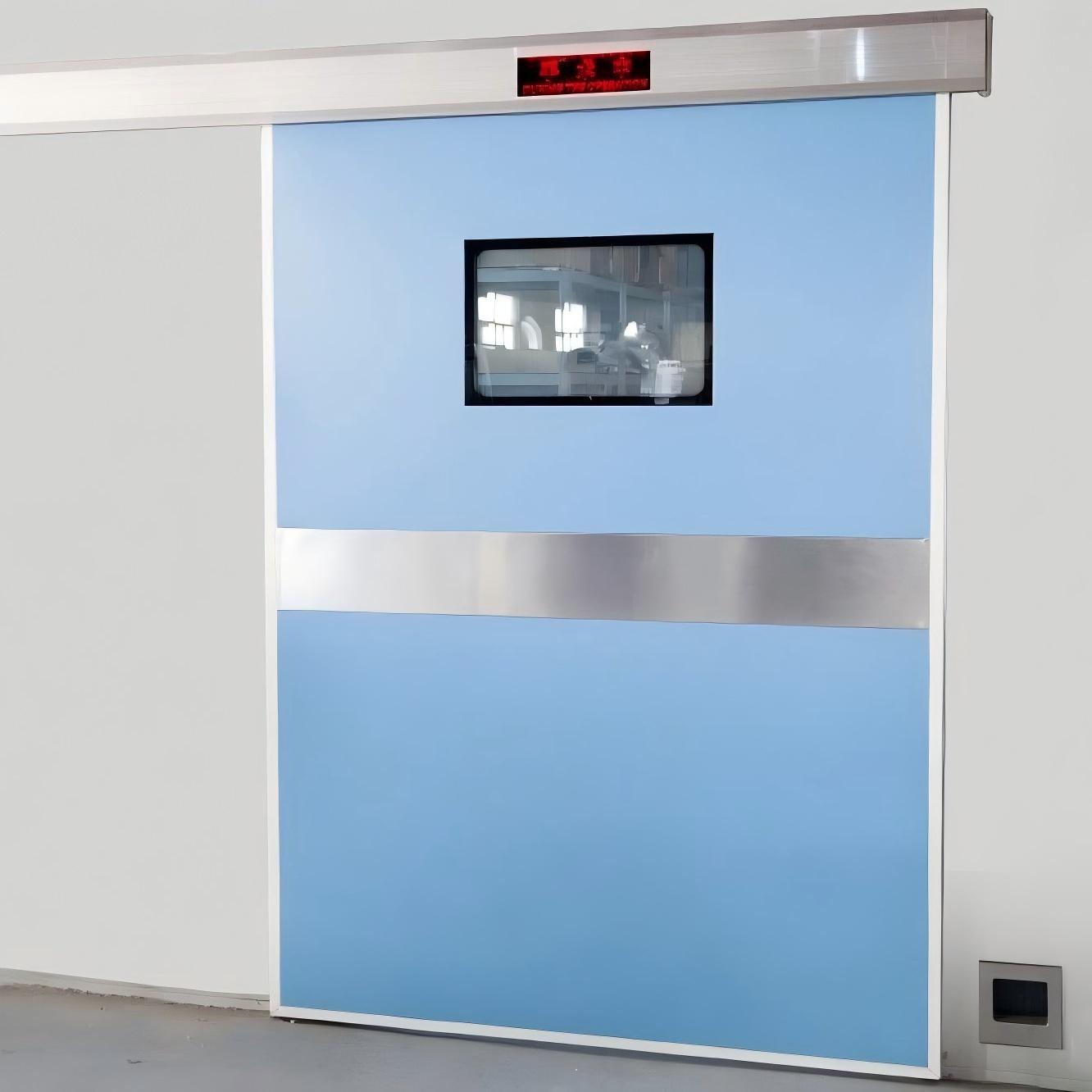

CE Standard Electric Medical Hermetic Sliding Door

Short Description:

The electric medical sliding door is an automatic door specially designed for the entrance and exit of the clean room. It is smooth, convenient, safe and reliable to open and close, and can meet the requirements of sound insulation and intelligence. The structure of the door leaf is stable all around, and the surface is made of brushed stainless steel panel or galvanized plate panel. The internal core material is paper honeycomb, and the door leaf is solid, flat and beautiful. The folding edges around the door leaf are stress-free and connected, which is sturdy and durable. The door leaf track runs smoothly and has good air tightness. The use of large-diameter wear-resistant pulleys greatly reduces the operating noise and prolongs the service life.

Send email to us

Product Detail

Product Tags

Application

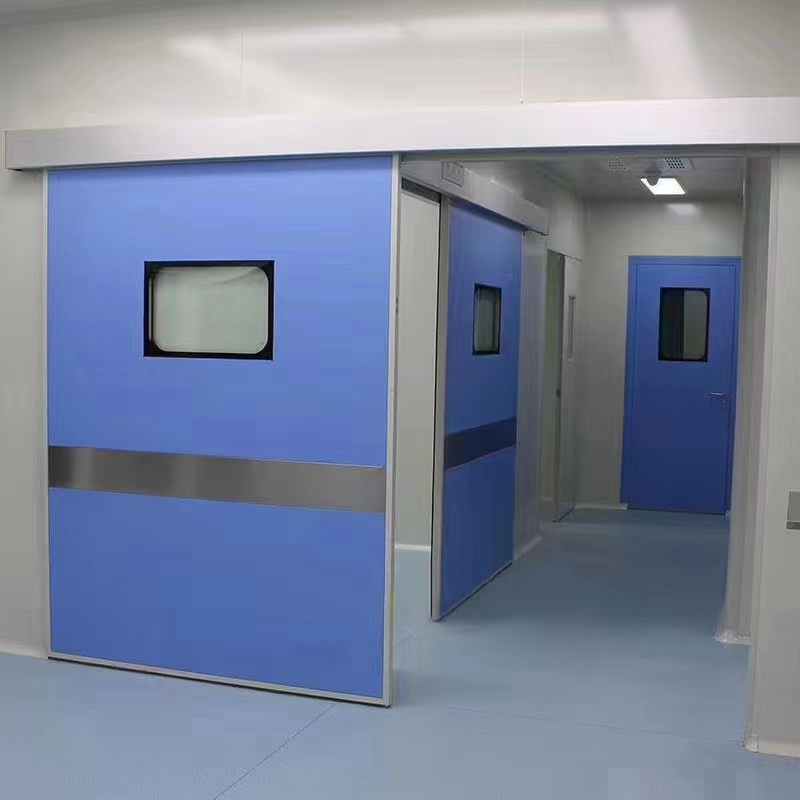

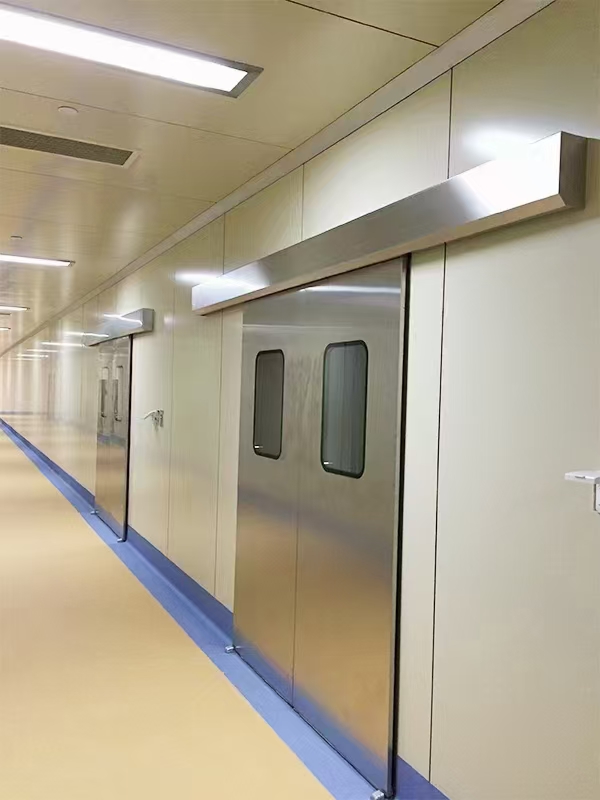

The medical sliding door can identify the person approaching the door (or a certain entry permission) as a door opening signal, open the door through the drive system, and automatically close the door after the person leaves, and control the opening and closing process. It is flexible to open, has a large span, is light in weight, is noiseless, soundproof, has strong wind resistance, is easy to operate, runs smoothly, and is not easy to damage. It is widely used in clean workshop, pharmaceutical clean room, hospital and other places.

Technical Data Sheet

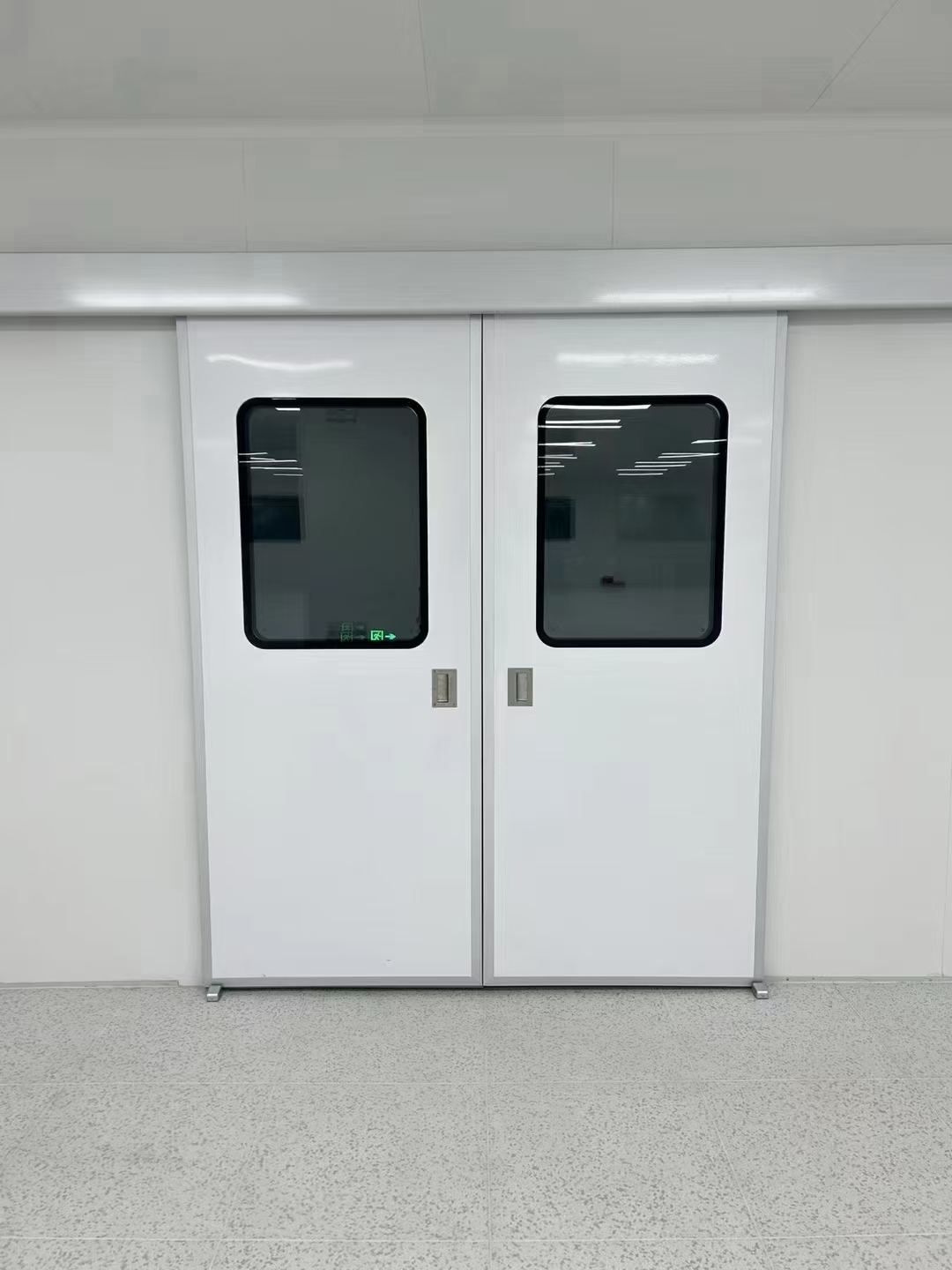

Type	Singe Sliding Door	Double Sliding Door
Door Leaf Width	750-1600mm	650-1250mm
Net Structure Width	1500-3200mm	2600-5000mm
Height	≤2400mm(Customized)
Door Leaf Thickness	40mm
Door Material	Powder Coated Steel Plate/Stainless Steel/HPL(Optional)
View Window	Double 5mm tempered glass(right and round angle optional; with/without view window optional)
Color	Blue/Grey White/Red/etc(Optional)
Opening Speed	15-46cm/s(Adjustable)
Opening Time	0~8s(Adjustable)
Control Method	Manual; foot induction, hand induction, touch button, etc
Power Supply	AC220/110V, single phase, 50/60Hz(Optional)

Remark: all kinds of clean room products can be customized as actual requirement.

Characteristics

1. Comfortable to use

Medical hermetic sliding doors are made of high-quality galvanized steel plates, and the surface is sprayed with high-voltage electrostatic powder, which is safe and environmentally friendly. In addition, this door is easy and convenient to use. It will close automatically after opening, which is conducive to the use of many patients with limited mobility in the hospital. It has good passability and low noise, which meets the hospital's requirements for a quiet environment. The door is equipped with an inductive safety device to prevent the hidden danger of pinching people. Even if the door leaf is pushed and pulled, there will be no system program disorder. In addition, there is an electronic door lock function, which can control the entry and exit of people according to actual needs.

2. Strong durability

Compared with ordinary wooden doors, medical hermetic sliding doors have a clear advantage in cost-effectiveness, and are superior to ordinary wooden doors in terms of impact resistance and maintenance and cleaning. At the same time, the service life of steel doors is also longer than other similar products.

3. High density

The airtightness of medical hermetic sliding doors is very good, and there will be no airflow overflow when closed. Ensure the indoor air clean environment. At the same time, it can also ensure the indoor and outdoor temperature difference to a great extent in winter and summer, creating an indoor environment with suitable temperature.

4. Reliability

Adopting professional mechanical transmission design and equipped with high-efficiency brushless DC motor, it has the characteristics of extended service life, large torque, low noise, etc., and the door body runs more smoothly and reliably.

5. Functionality

The medical hermetic sliding doors are equipped with a number of intelligent functions and protection devices. Its control system can set the control process. Users can set the speed and opening degree of the door according to their needs, so that the medical door can maintain the best state for a long time.

Production

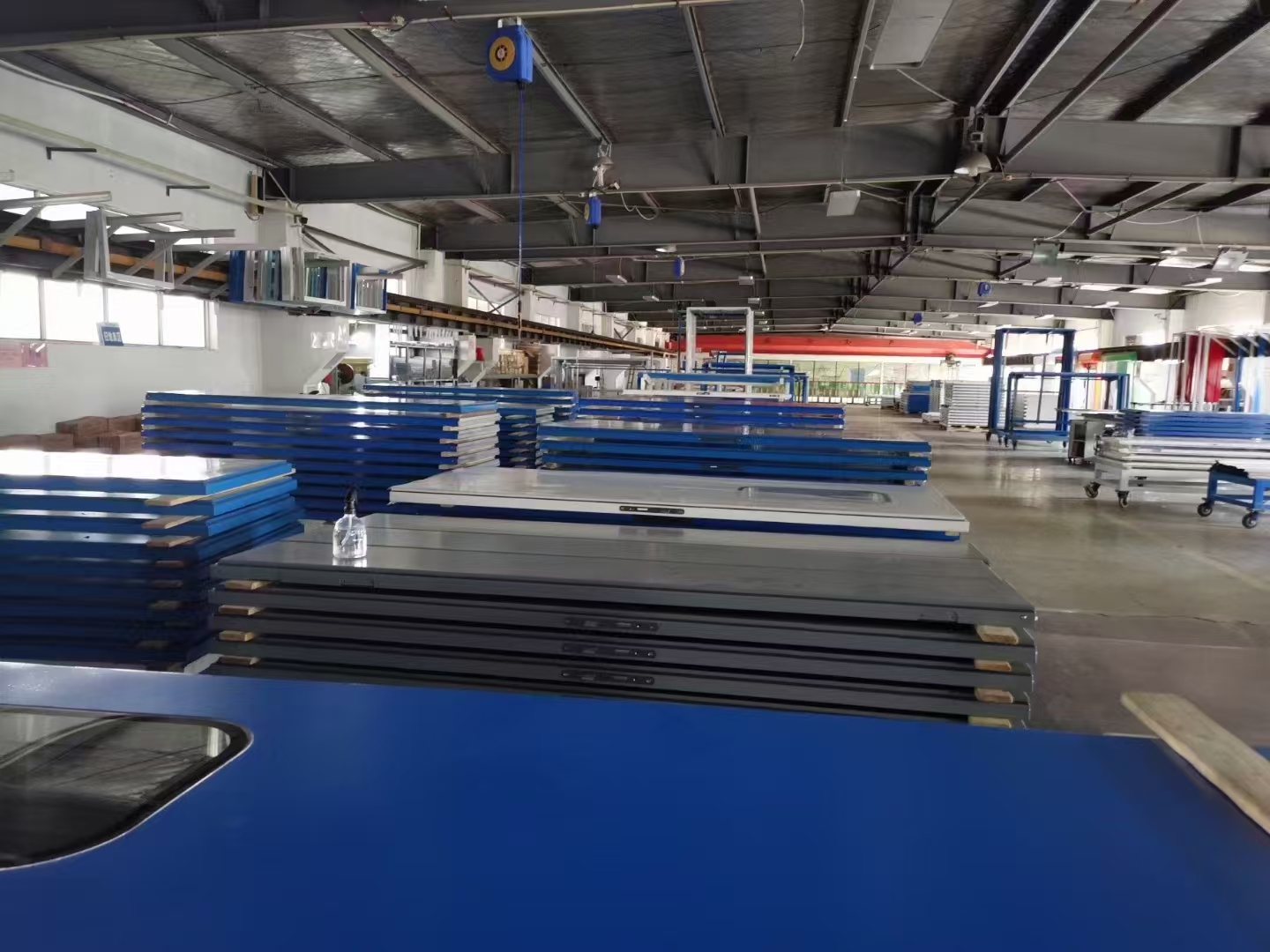

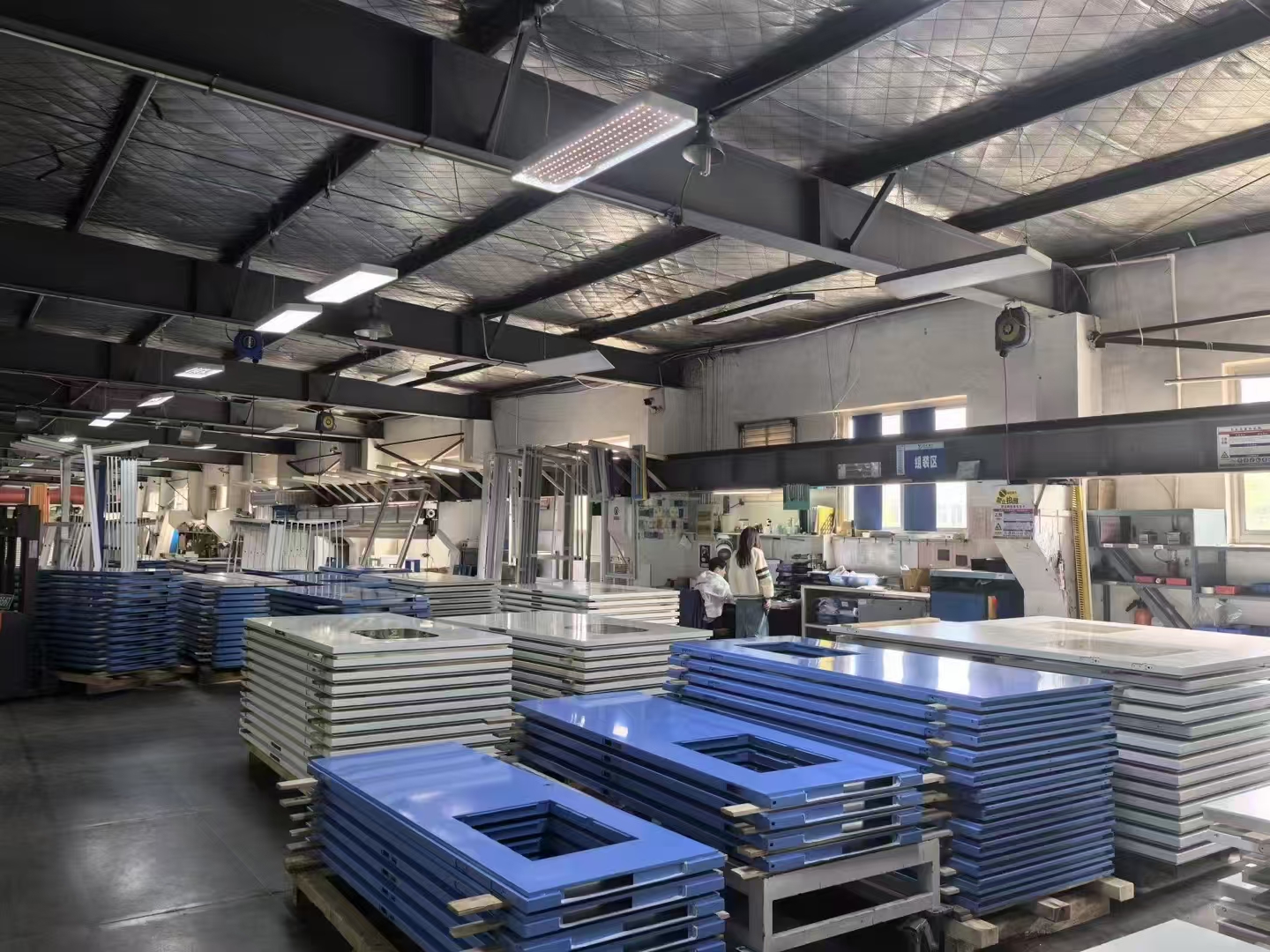

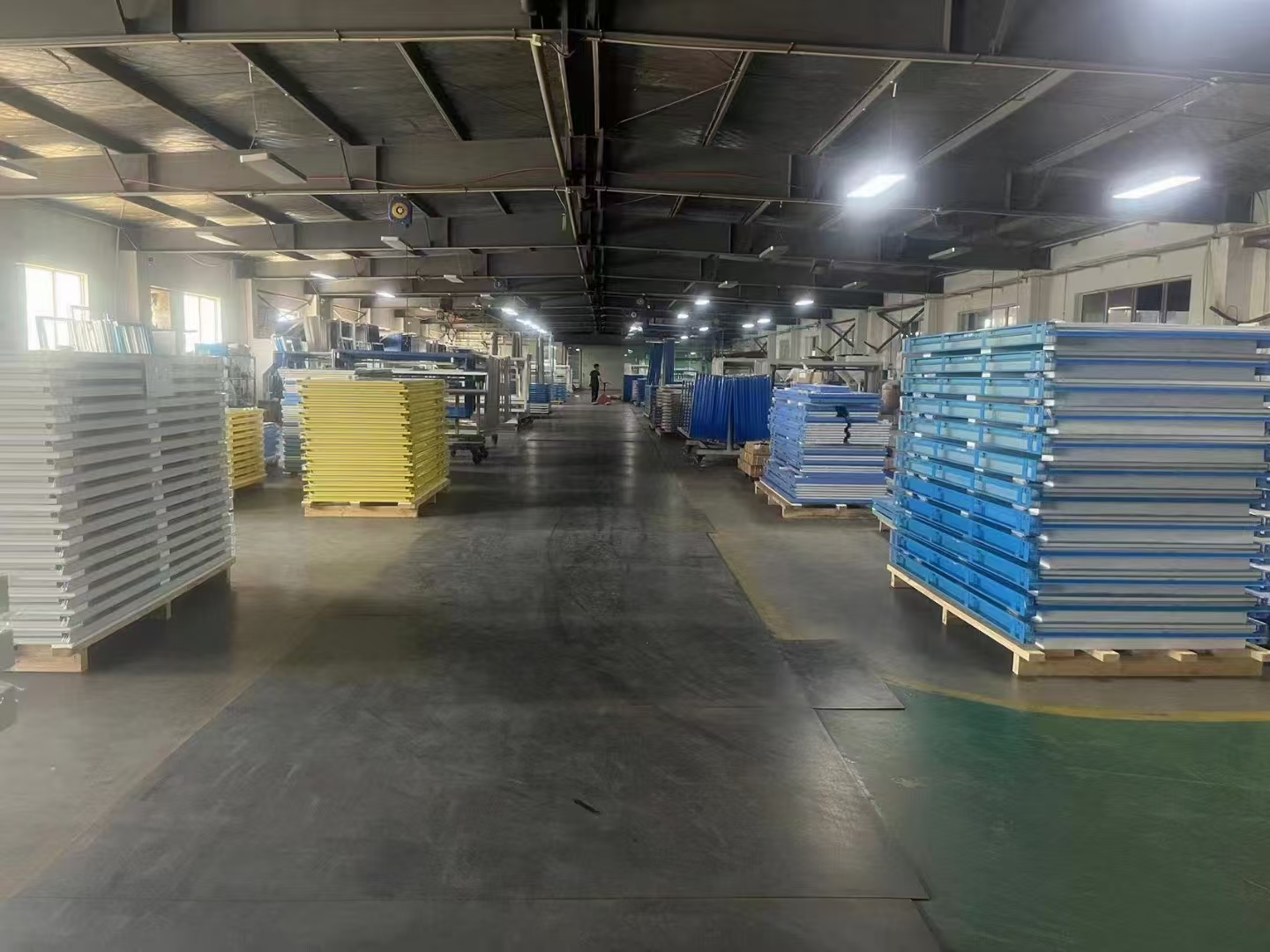

The medical sliding door is processed via a series of strict procedures such as folding, pressing and glue curing, powder injection, etc. Usually powder coated steel sheet or stainless steel is usually used for door materail, and use lightweight paper honeycomb as core material.

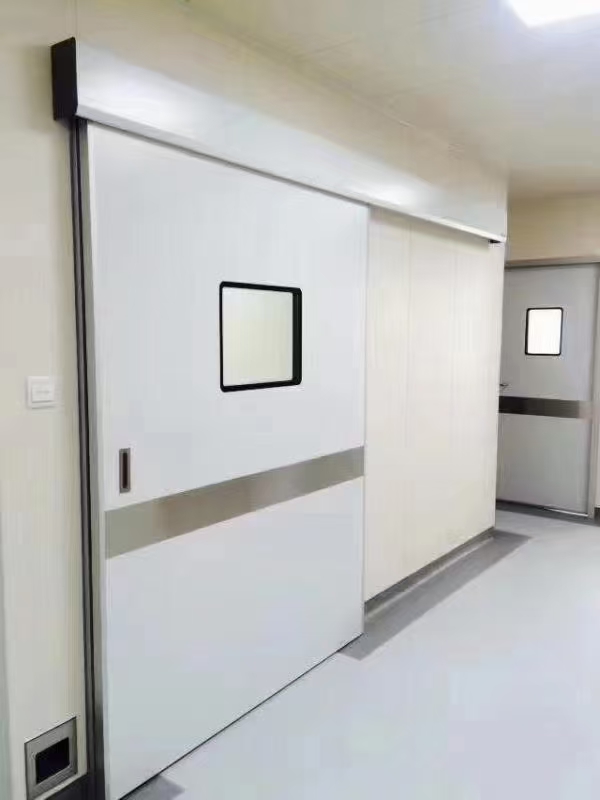

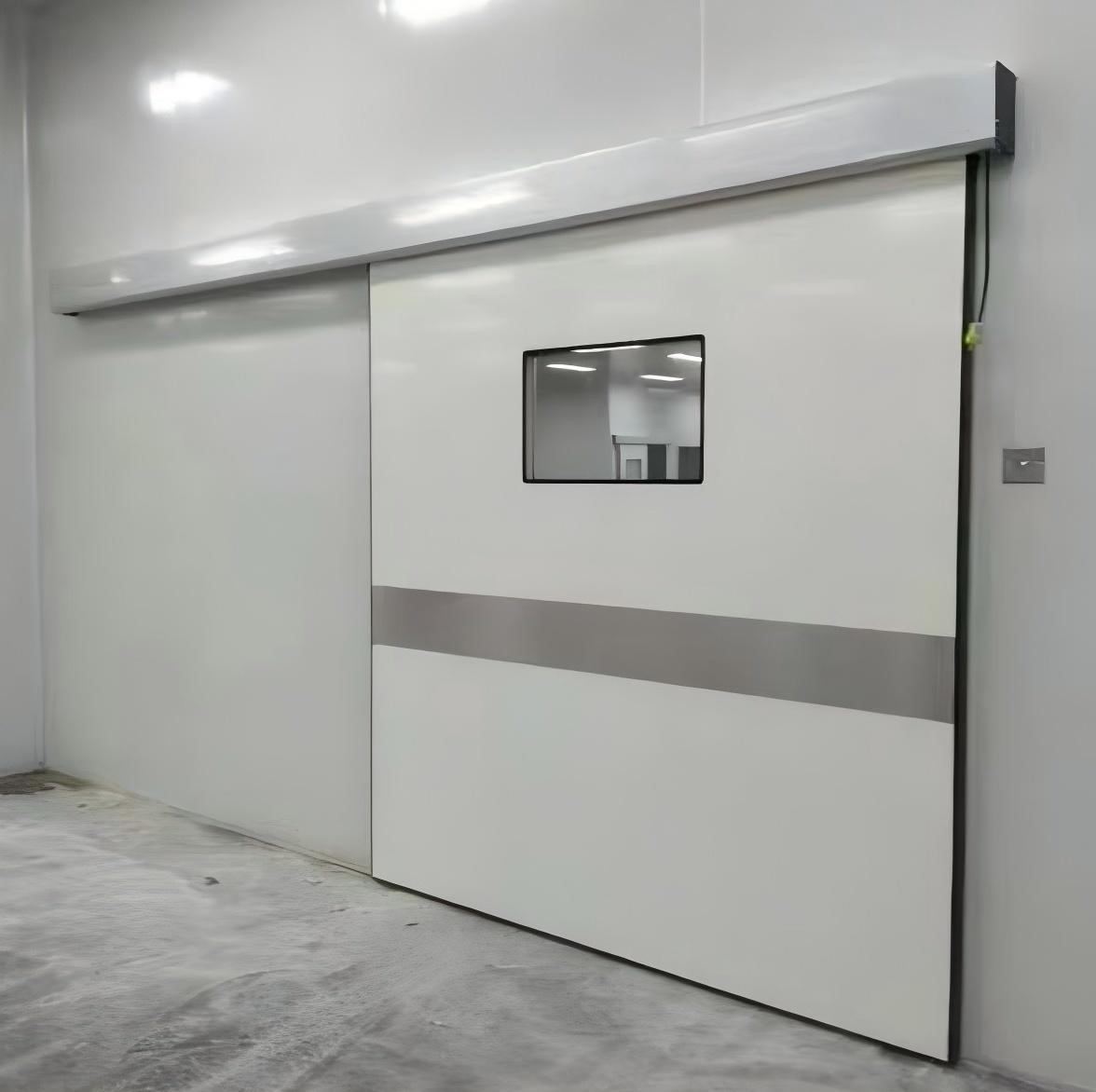

Installation

The external power beam and door body are directly hung on the wall, and the installation is quick and easy; the embedded power beam adopts embedded installation, which is kept on the same plane as the wall, which is more beautiful and full of overall sense. It can prevent cross contamination and maximize the clean performance.
