CE Standard Cleanroom Flush LED Panel Light
Product Application

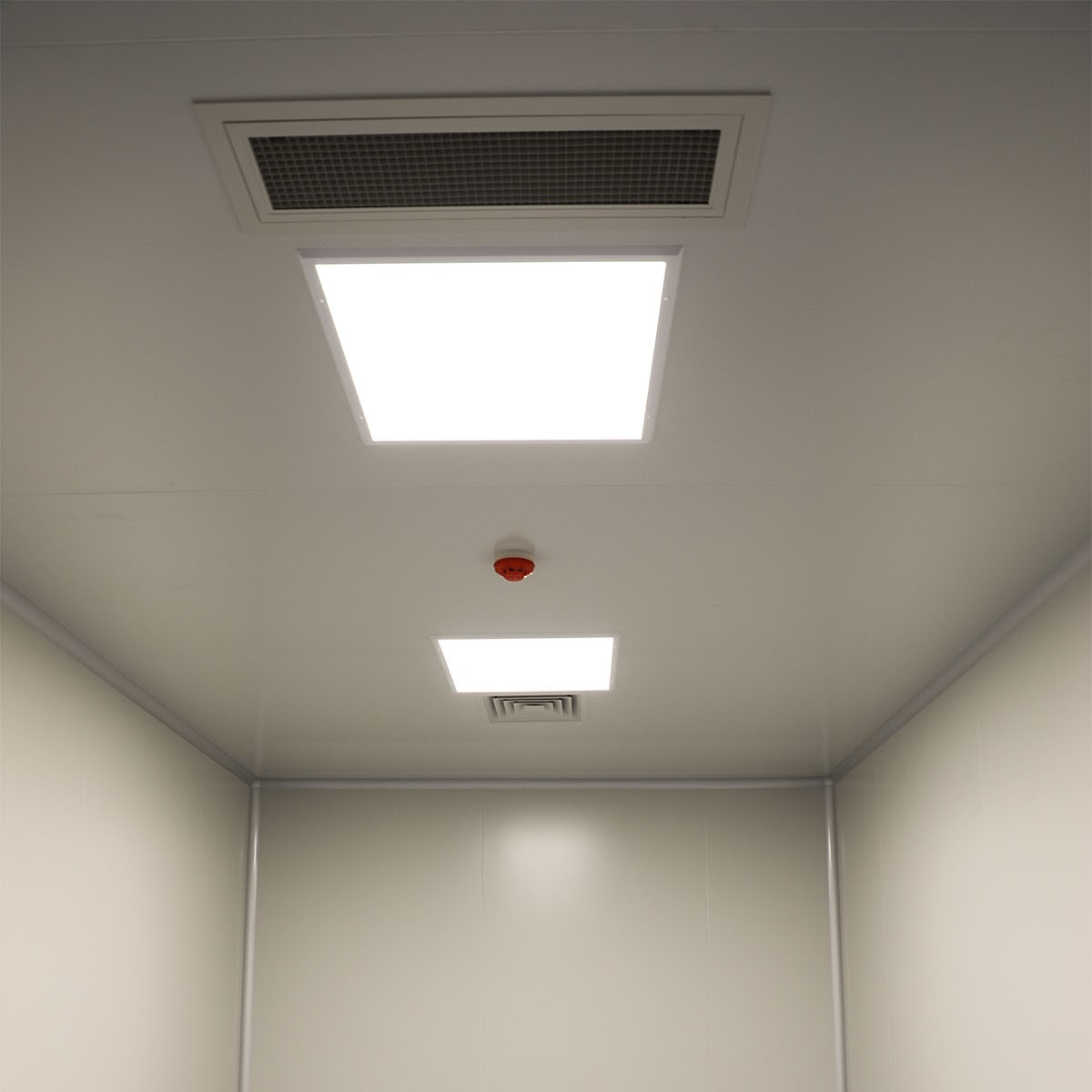

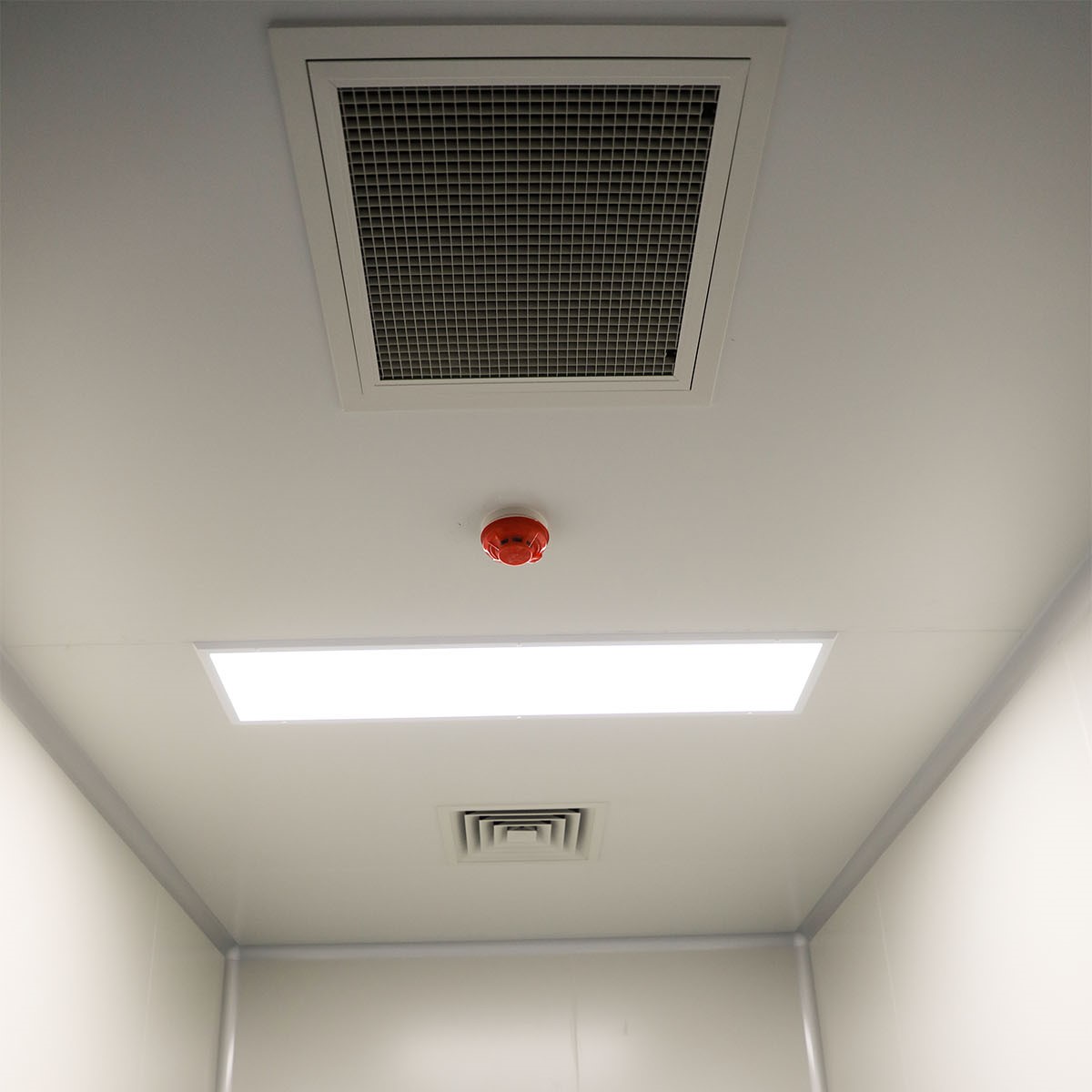

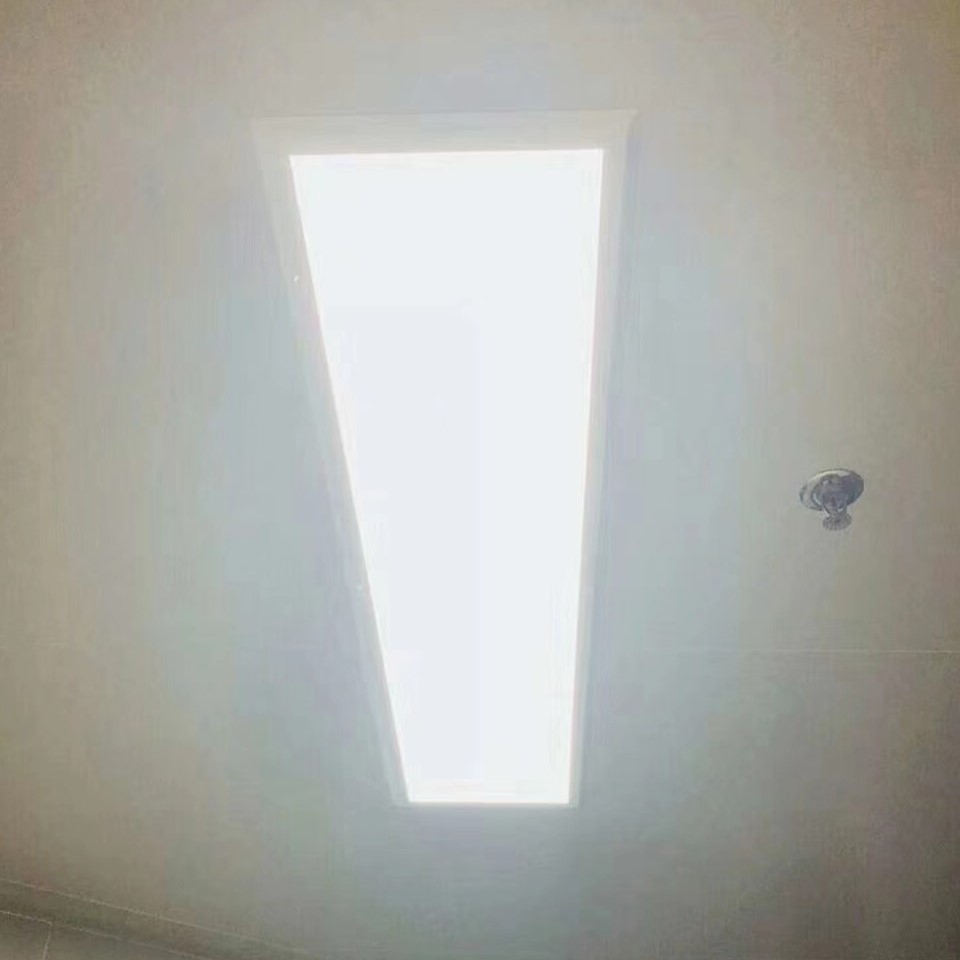

LED panel light is suitable for clean rooms, hospitals, operating rooms, pharmaceutical industry, biochemical industry, food processing industry, etc.
Technical Data Sheet
| Model |
SCT-L2'*1' |
SCT-L2'*2' |
SCT-L4'*1' |
SCT-L4'*2' |
| Dimension(W*D*H)mm |
600*300*9 |
600*600*9 |
1200*300*9 |
1200*600*9 |
| Rated Power(W) |
24 |
48 |
48 |
72 |
| Luminous Flux(Lm) |
1920 |
3840 |
3840 |
5760 |
| Lamp Body |
Aluminum Profile |
|||
| Working Temperature(℃) |
-40~60 |
|||
| Working Lifetime(h) |
30000 |
|||
| Power Supply |
AC220/110V, Single Phase, 50/60Hz(Optional) |
|||
Remark: all kinds of clean room products can be customized as actual requirement.
Product Features
1. Very low energy consumption
Adopting high-lumen LED lamp beads, the high luminous flux reaches 3000 lumens, the energy-saving effect is more obvious, and the energy consumption is reduced by more than 70% compared with energy-saving lamps.
2. Long service life
Under the appropriate current and voltage, the service life of LED lamps can reach 30,000 hours, and the lamp can be used for more than 10 years if it is turned on for 10 hours a day.
3. Strong protection function
The surface has been specially treated to achieve corrosion resistance, and the use of aviation aluminum will not rust. The air purifier lamp is customized, dust-proof and non-sticky, waterproof, easy to clean, and fire-proof. The lampshade made of engineering PC material can be used for many years and is as clean as new.
Product Installation
Make 10-20mm diameter opening through clean room ceilings. Adjust LED panel light in correct position and fix it with ceilings by screws. Connect output wire with the output terminal of the light driver, and then connect the input terminal of the light driver with external power supply. Finally, fix the light wire on ceilings and electrify it.
