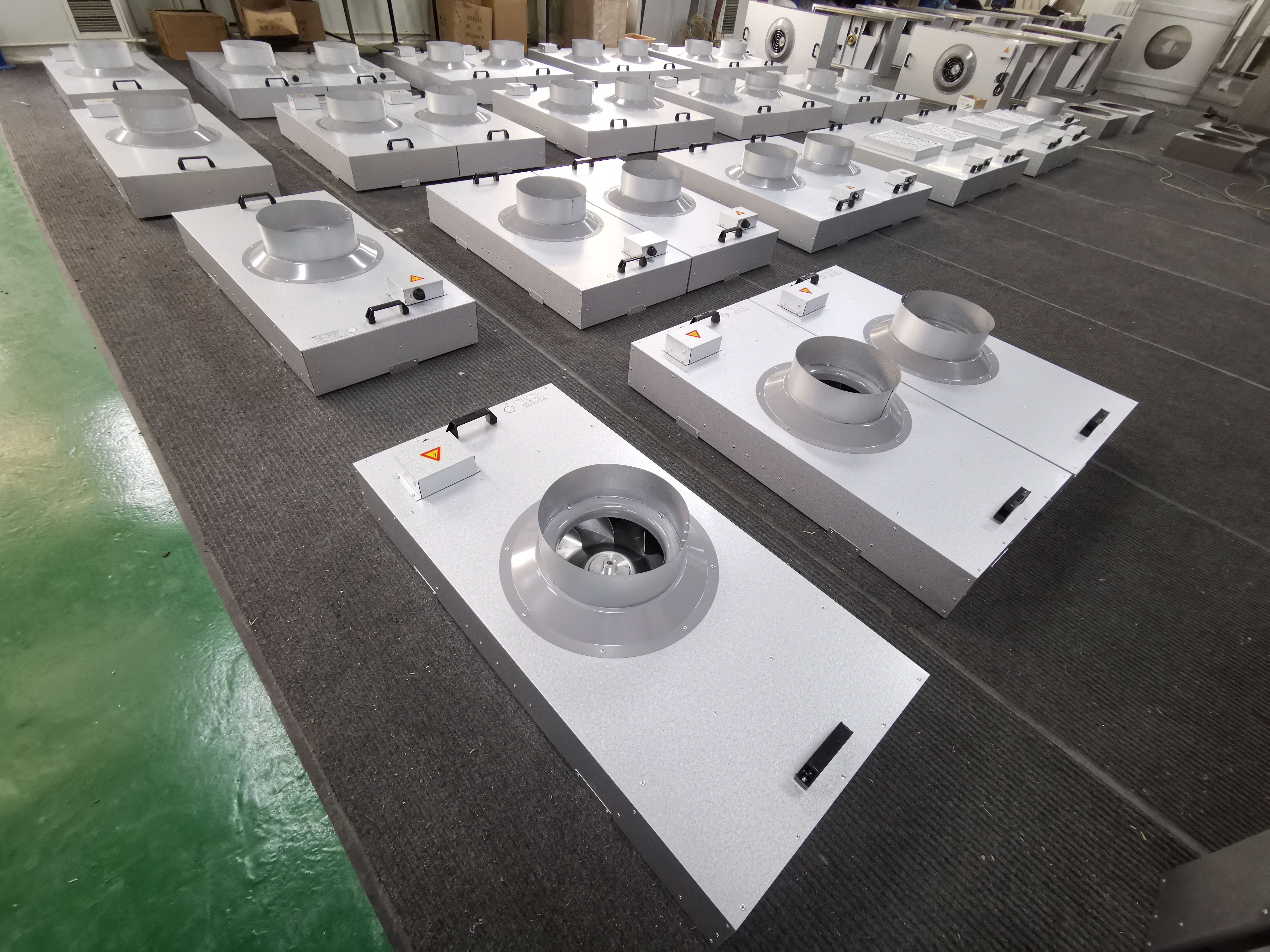

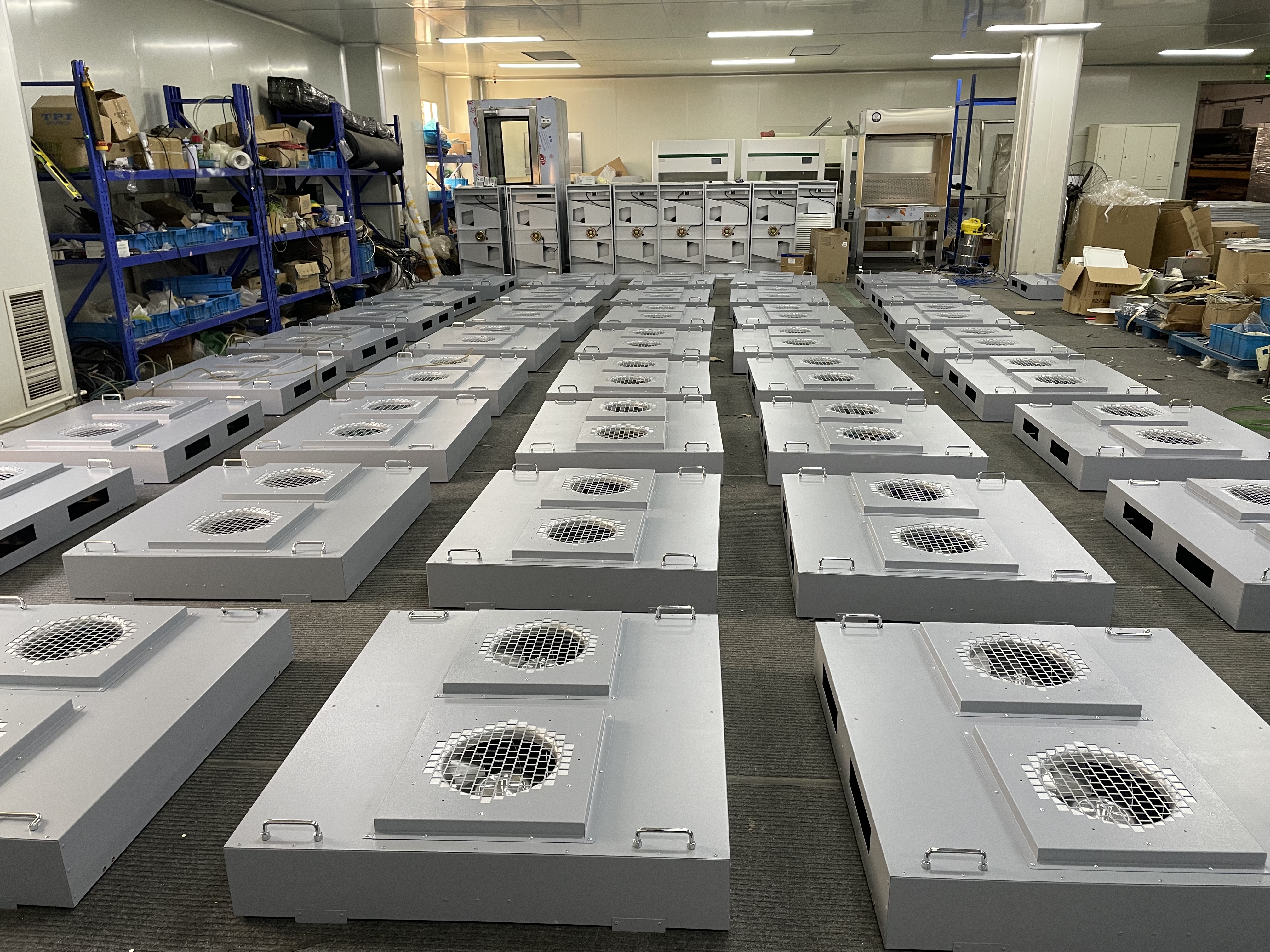

CE Standard Clean Room FFU Fan Filter Unit
Product Description
The full name of FFU is fan filter unit. FFU can provide high-quality air into clean room. It can be used in the place where has strict air pollution control to save energy, reduce consumption and operation cost. Simple design, lower case height. Special air inlet and air channel design, small shock, reduce pressure loss and noise. As-built internal diffuser plate, uniform air pressure expanding to make sure averaged and stable air velocity outside air outlet. Motorized fan can be used in high static pressure and keep low noise for long time, lower power consumption to save cost.
Technical Data Sheet
| Model |
SCT-FFU-2'*2' |
SCT-FFU-2'*4' |
SCT-FFU-4'*4' |
| Dimension(W*D*H)mm |
575*575*300 |
1175*575*300 |
1175*1175*350 |
| HEPA Filter(mm) |
570*570*70, H14 |
1170*570*70, H14 |
1170*1170*70, H14 |
| Air Volume(m3/h) |
500 |
1000 |
2000 |
| Primary Filter(mm) |
295*295*22, G4(Optional) |
495*495*22, G4(Optional) |
|
| Air Velocity(m/s) |
0.45±20% |
||
| Control Mode |
3 Gear Manual Switch/Stepless Speed Control(Optional) |
||
| Case Material |
Galvanized Steel Plate/Full SUS304(Optional) |
||
| Power Supply |
AC220/110V, Single Phase, 50/60Hz(Optional) |
||
Remark: all kinds of clean room products can be customized as actual requirement.
Product Features
Lightweight and strong structure, easy to install;
Uniform air velocity and stable running;
AC and EC fan optional;
Remote control and group control available.
Product Application
Production Facility
FAQ
Q: What's the efficiency of hepa filter on FFU?
A: The hepa filter is H14 class.

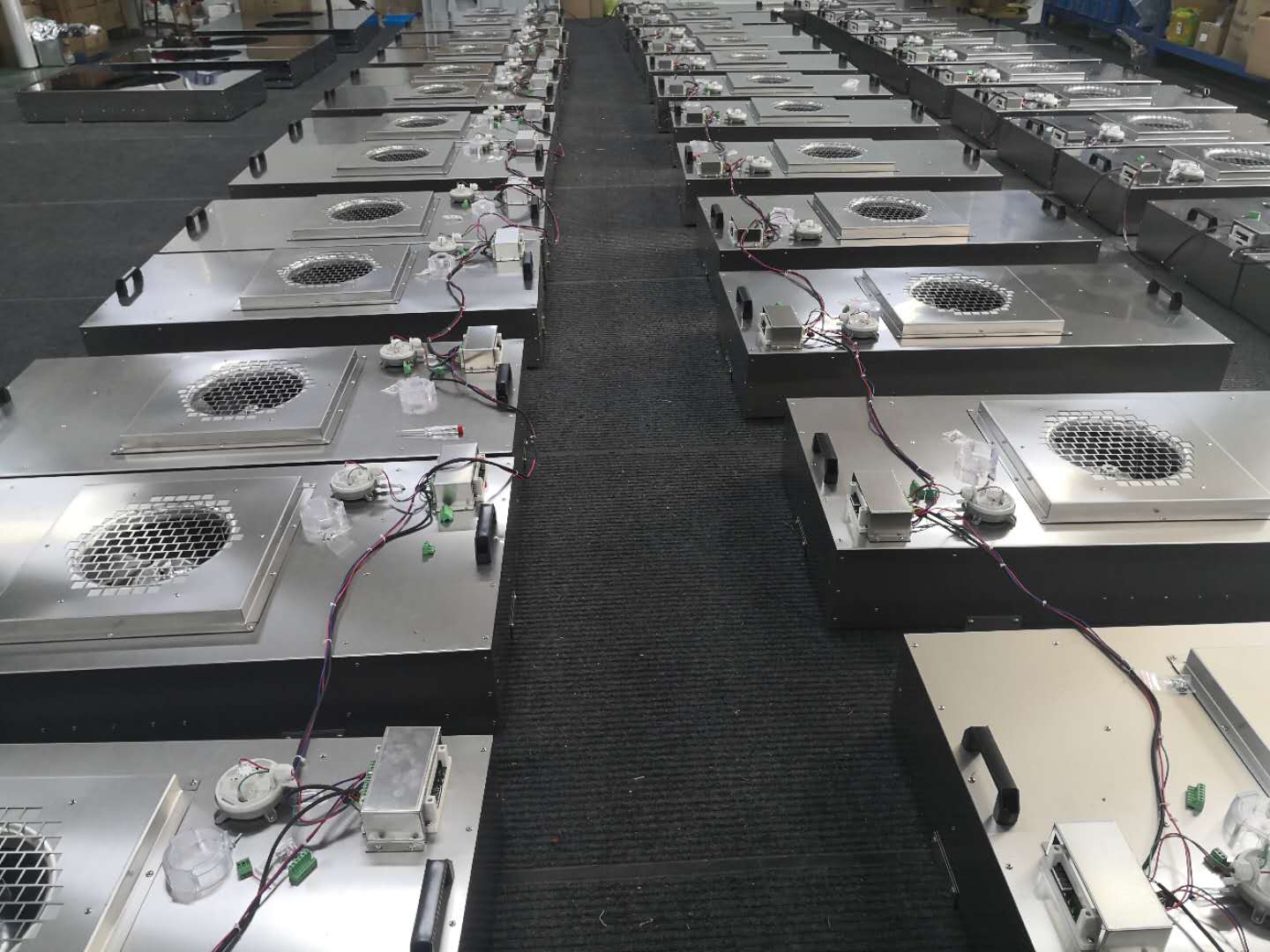

Q: Do you have EC FFU?
A: Yes, we have.
Q: How to control FFU?
A: We have manual switch to control AC FFU and we also have touch screen controller to control EC FFU.

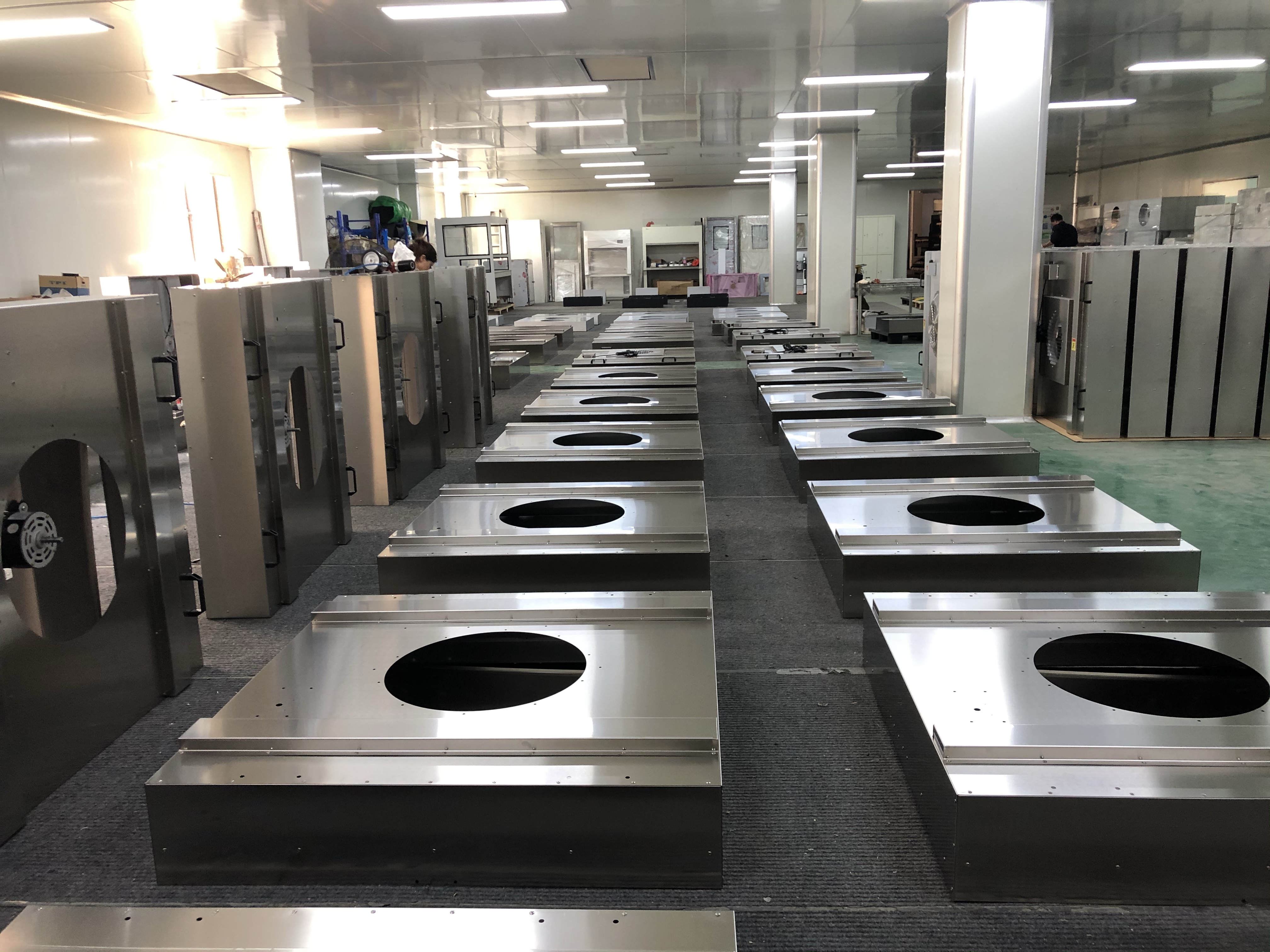

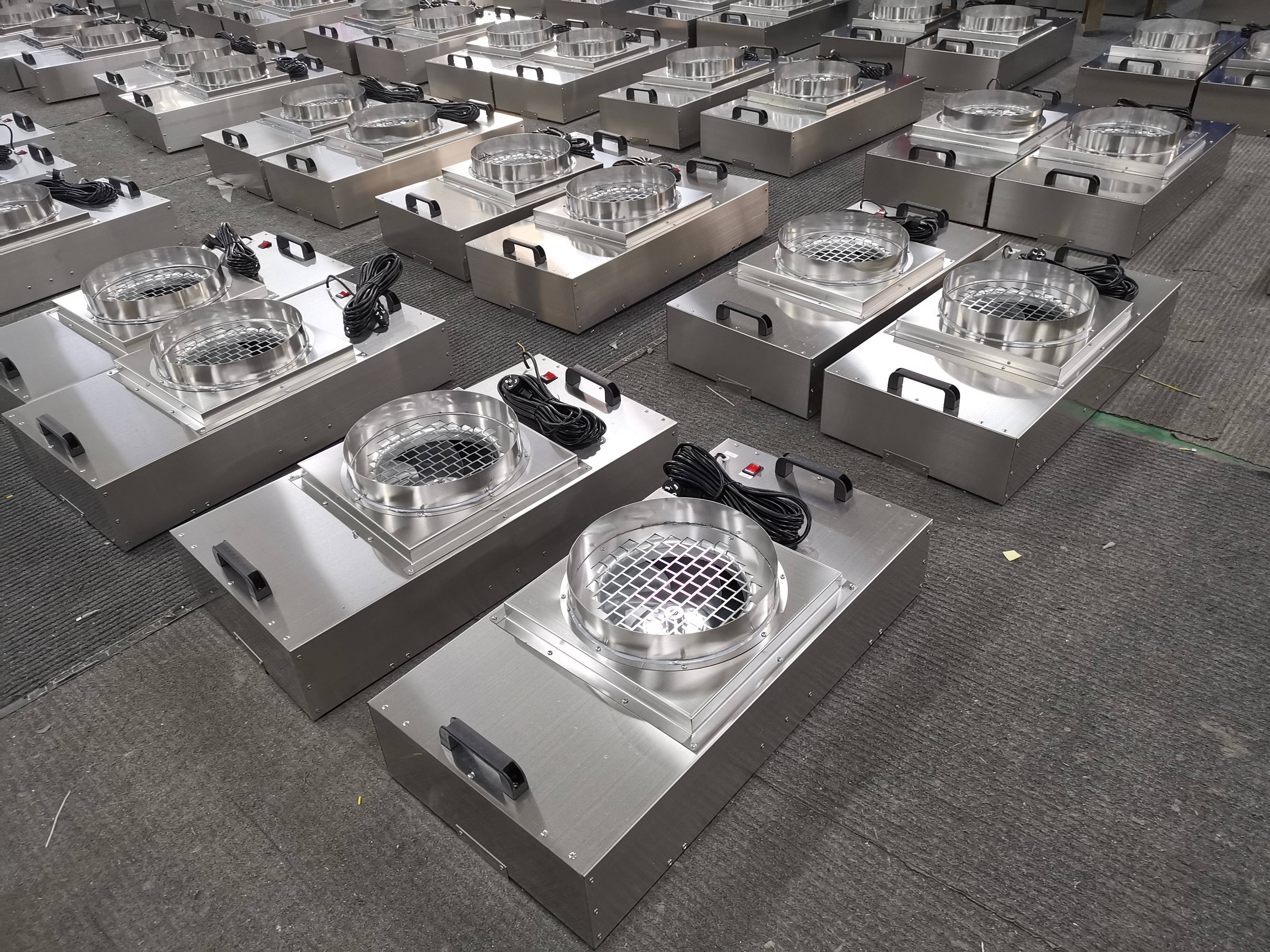

Q: What's the material optional for FFU case?
A: The FFU can be both galvanized steel plate and stainless steel.
