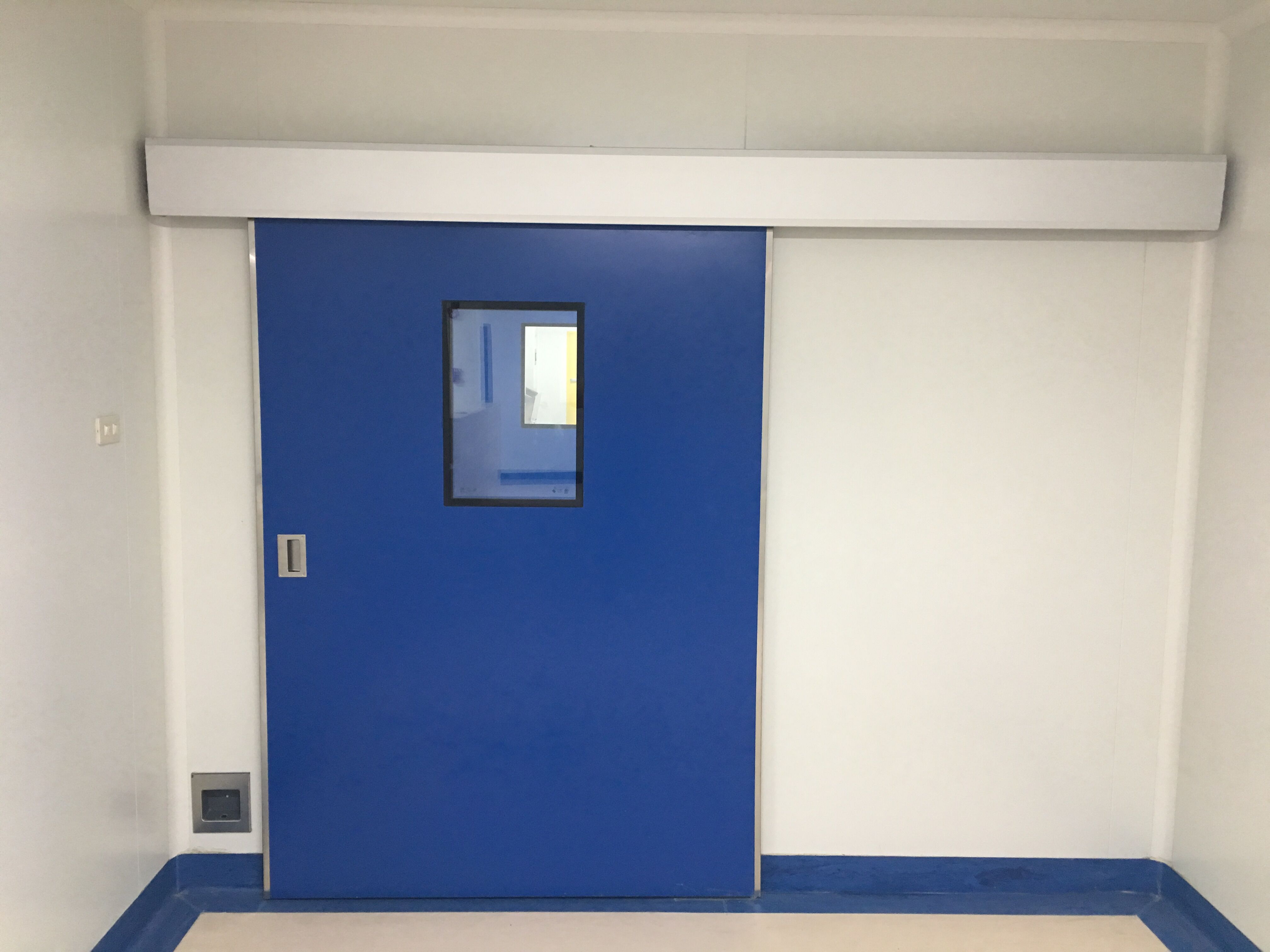

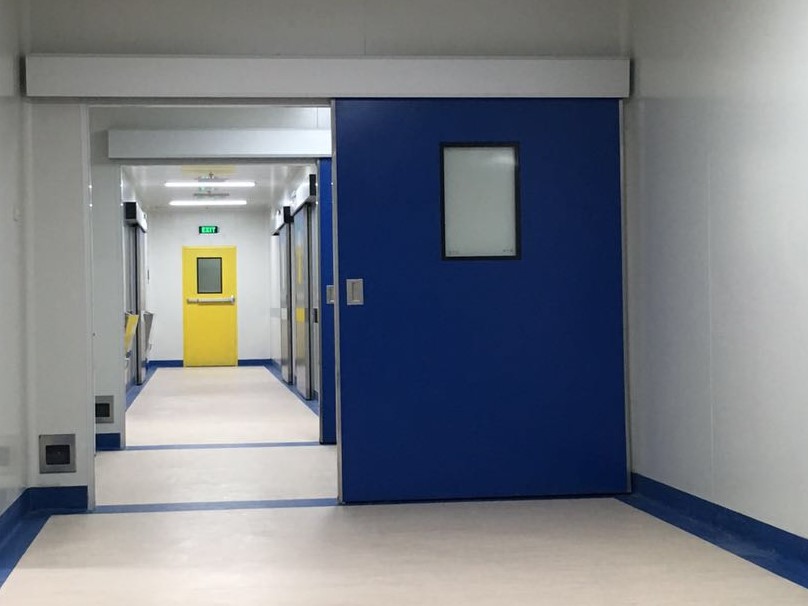

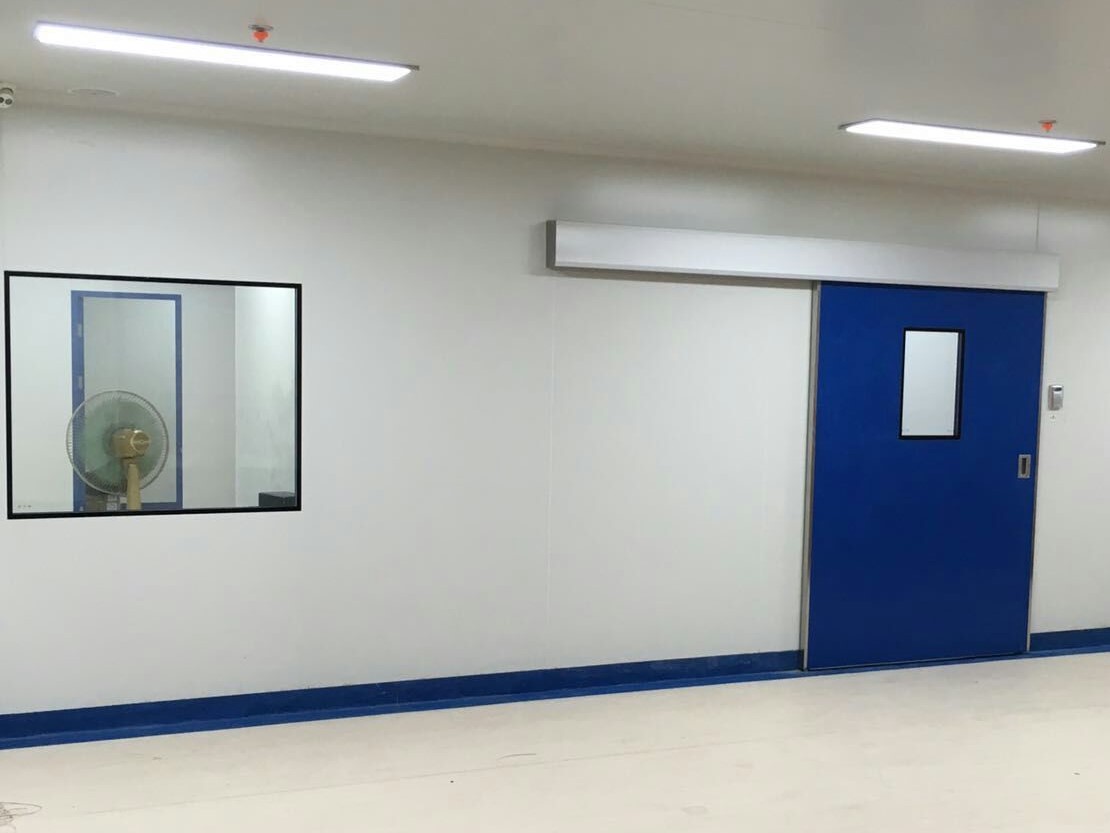

Airtight sliding door is a kind of airtight door used in clean room industry especially in hospital. A couple of intelligent function and protective device are available such as optional control method and adjustable running speed, etc. It can recognize the action of people approaching the door as a control unit for opening signal. It drives the system to open the door, automatically closes the door after the people leaves, and controls the opening and closing process. Automatically return when encountering obstacles. When the door encounters obstacles from people or objects during the closing process, the control system will automatically reverse according to the reaction, immediately opening the door to prevent incidents of jamming and damage to the machine parts, improving the safety and service life of the automatic door; Humanized design, the door leaf can adjust itself between half open and full open, and there is a switching device to minimize air conditioning outflow and save air conditioning energy frequency; The activation method is flexible and can be specified by the customer, generally including buttons, hand touch, infrared sensing, radar sensing, foot sensing, card swiping, fingerprint facial recognition, and other activation methods; Regular circular window 500*300mm, 400* 600mm, etc and embedded with 304 stainless steel inner liner and placed with desiccant inside; It is also available without handle. The bottom of the sliding door has a sealing strip and surrounded with anti-collision sealing strip with safety light. The optional stainless steel band is covered in the middle to avoid anti-collision as well.
Type |
Singe Sliding Door |

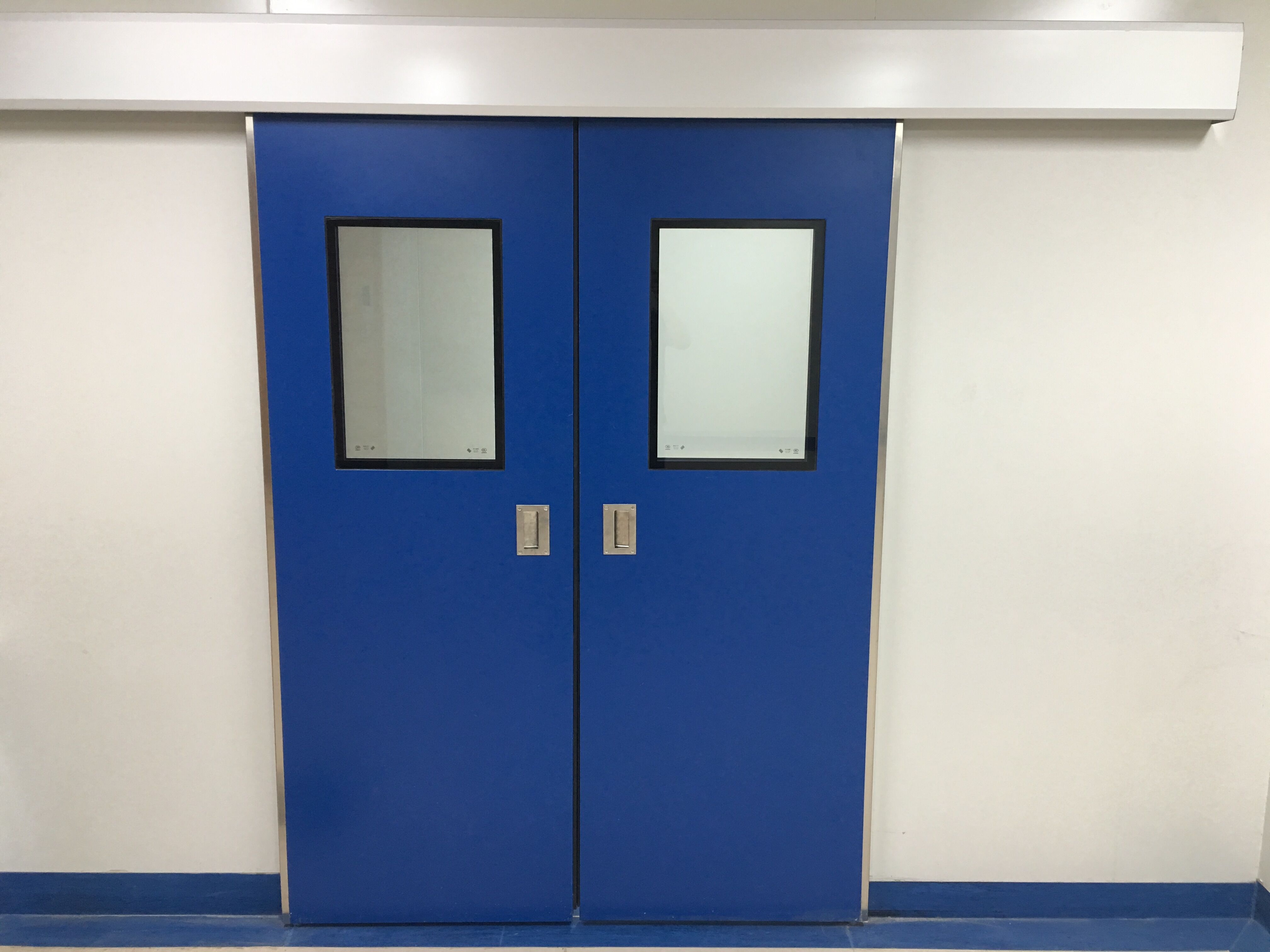

Double Sliding Door |
Door Leaf Width |
750-1600mm |
650-1250mm |
Net Structure Width |
1500-3200mm |
2600-5000mm |
Height |
≤2400mm(Customized) |
|
Door Leaf Thickness |
40mm |
|
Door Material |
Powder Coated Steel Plate/Stainless Steel/HPL(Optional) |
|
View Window |
Double 5mm tempered glass(right and round angle optional; with/without view window optional) |
|
Color |
Blue/Grey White/Red/etc(Optional) |
|
Opening Speed |
15-46cm/s(Adjustable) |
|
Opening Time |
0~8s(Adjustable) |
|
Control Method |
Manual; foot induction, hand induction, touch button, etc |
|
Power Supply |
AC220/110V, single phase, 50/60Hz(Optional) |
Remark: all kinds of clean room products can be customized as actual requirement.
Professional meachanical drive design;
Long service life brushless DC motor;
Convenient operation and smooth running;
Dust free and airtight, easy to clean.

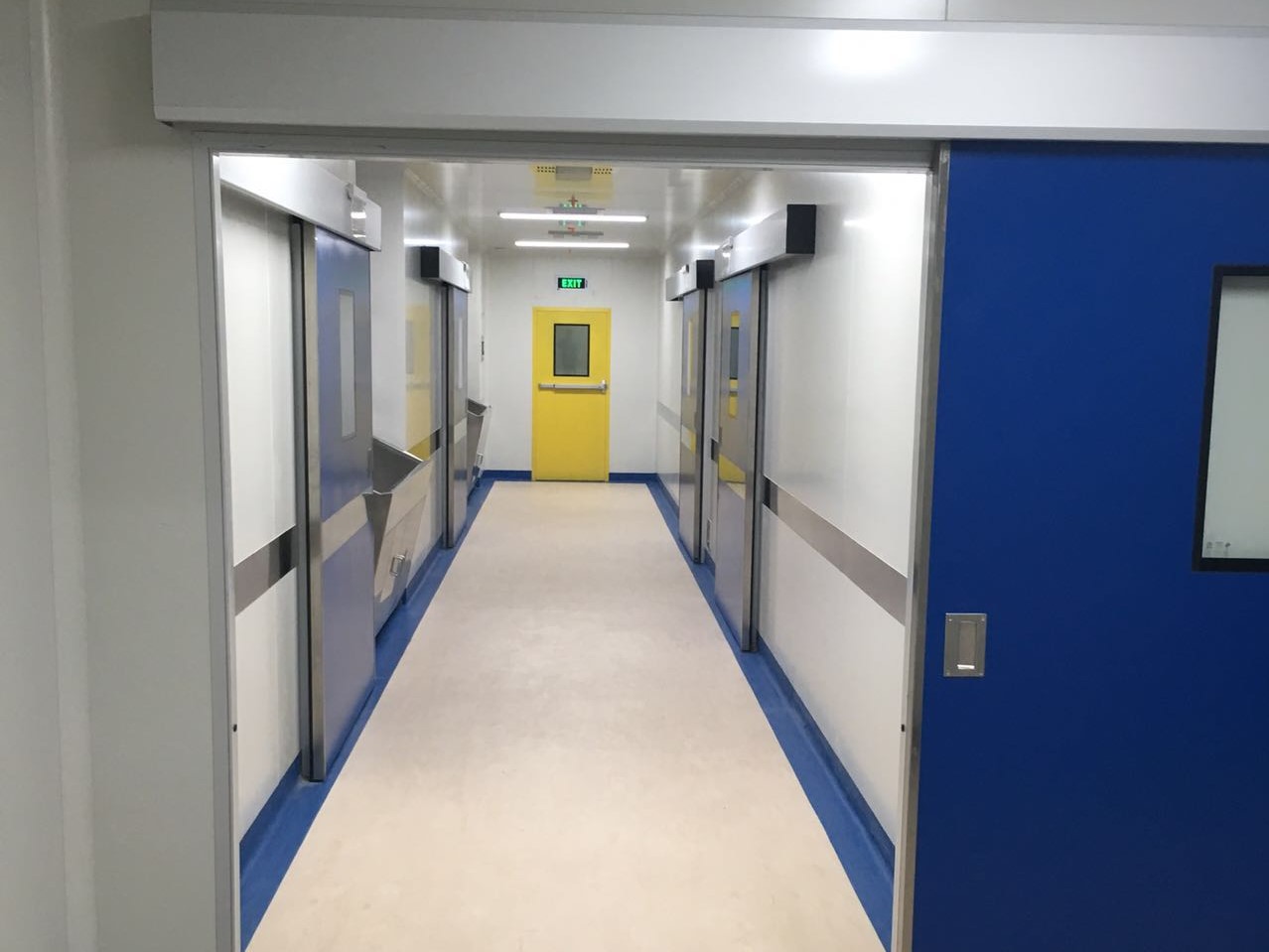

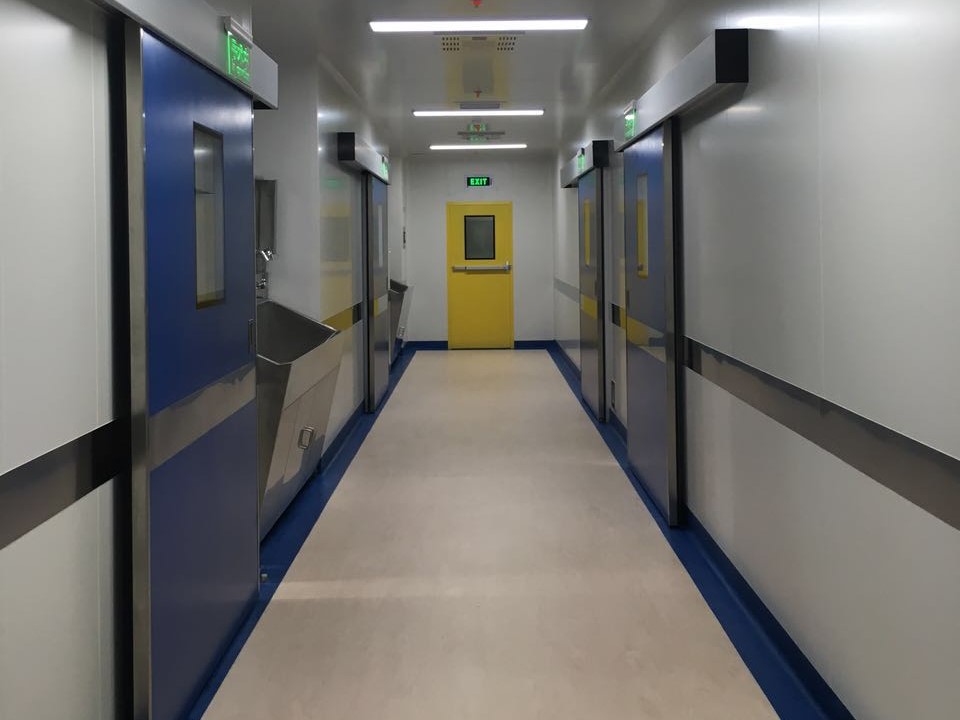

Widely used in hospital, pharmaceutical industry, laboratory, electronic industry, etc.
